HD CAMERA & AUTO GUIDERS
BRESSER Full HD AUTO GUIDING KIT AR90/500
Includes : Guiding-Scope, HD Guiding-Camera & Dovetail Clamp
₹ 32700 + 18% GST

DESCRIPTION
Finally, a universal tracking kit is available, which is easy to assemble and handle. Consisting of a telescopic sight, a tracking camera and the required prism clamp you can start long-term photography with active tracking control (autoguiding).

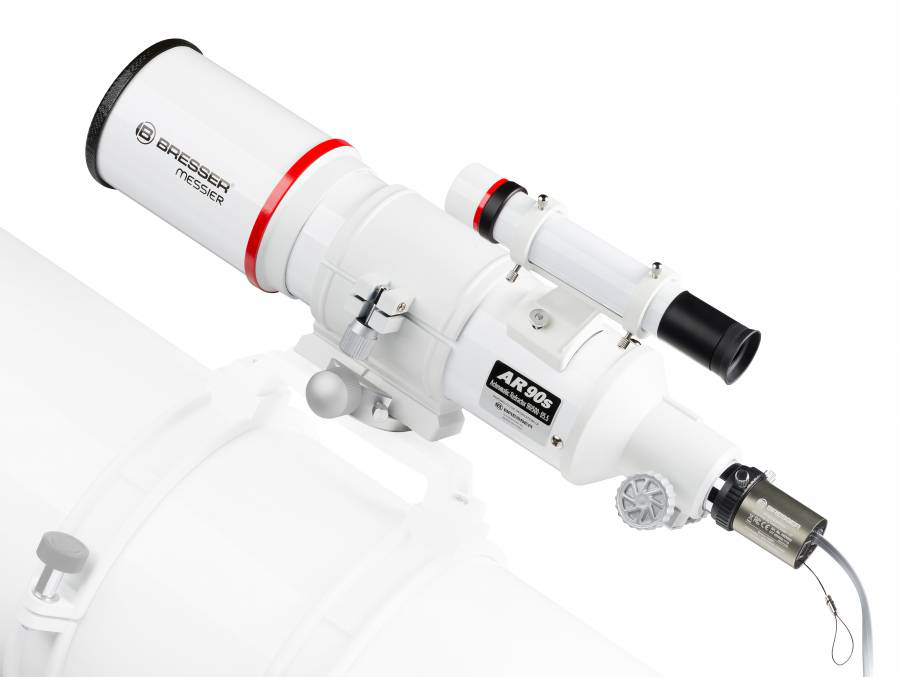

Simply mount the prism clamp with the mounting screws on the carrying handle of the BRESSER Messier and EXPLORE-SCIENTIFIC telescopes and the AR90 / 500 guide scope with tracking camera can already be fixed stably parallel to the main telescope. The tracking camera is now connected directly to the ST-4 compatible autoguider socket of your telescope mount. Connecting the tracking camera via USB cable to your Windows computer and install the camera drivers and any Autoguider software - you can start with the astrophotography.

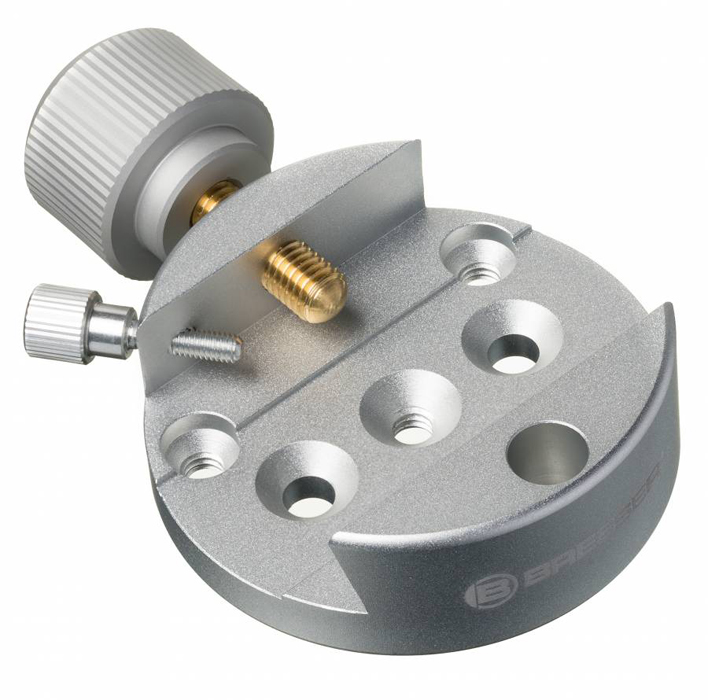

The prism clamp has 2 x 6mm countersunk holes (35mm hole spacing) and 3 further 1/4 "photo tapped holes to allow for versatile adaptation to a variety of other telescopes and adapter plates. The tracking camera is very useful for tracking Recording of planets and even deep-sky objects. A detailed description of the tracking camera can be found at the BRESSER article number 4959050.

IMPORTANT NOTES :
The autoguider software is not included. You can use PHD Guiding, Guidedog, Metaguide, Guidemaster (Freeware) or AstroArt, MaxIm DL (chargeable).
1. DOWNLOAD PHD-Guiding : http://www.stark-labs.com/phdguiding.html
2. DOWNLOAD GuideDog : http://barkosoftware.com/GuideDog/index.html

Features
Universal BRESSER Guiding Kit
Guiding-scope, guiding-camera and dovetail clamp included
For long exposure Astrophotography with autoguiding
Aperture of guiding-scope: 90mm
Focal length of guiding-scope: 500mm
Screw set for Messier/ES handle included
Fits also to many other telescopes

Scope of Delivery
Guiding-scope BRESSER Messier AR90/500 (Art.Nr. 4890500) + Acc.
Guiding-camera BRESSER GPCMOS02000KPA color (Art.Nr. 4959050)
Dovetail-clamp for Messier/ES/GP/Vixen (Art.Nr. 4910220)

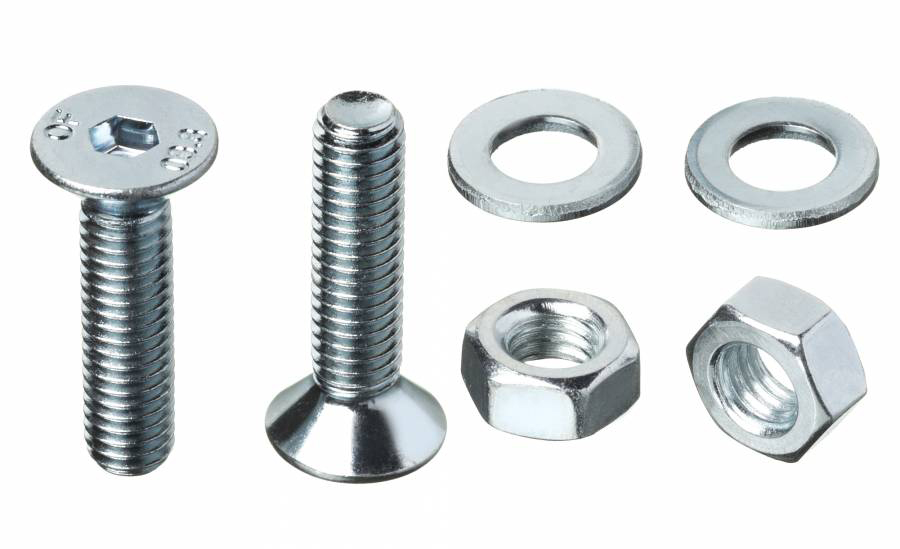

Screw-set for Messier/ES handle included

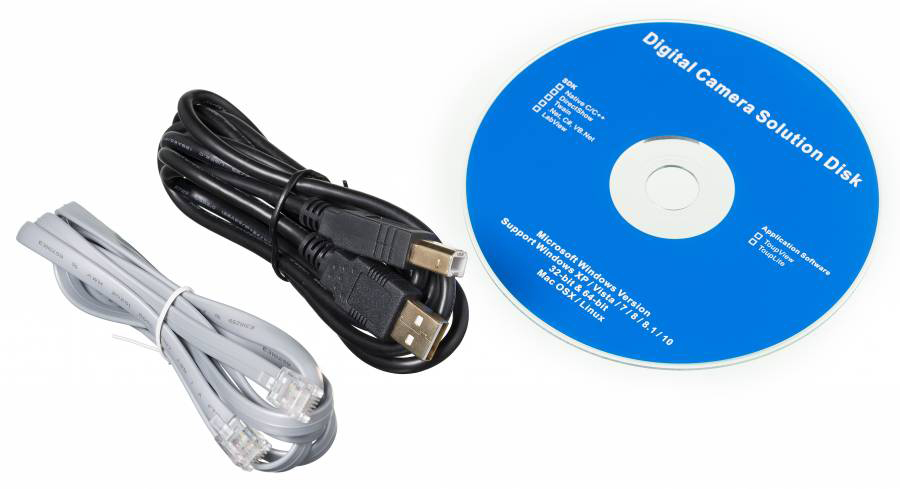

USB 2.0 cable (camera to computer)
ST-4 cable (camera to teleskope mount)
Camera driver software + ASCOM driver
Professional ToupSky imaging software

TECHNICAL SPECIFICATIONS
Colour green
Material Aluminium
Total length 72 mm
Net weight (without access.) 90 g



SPECIFICATIONS

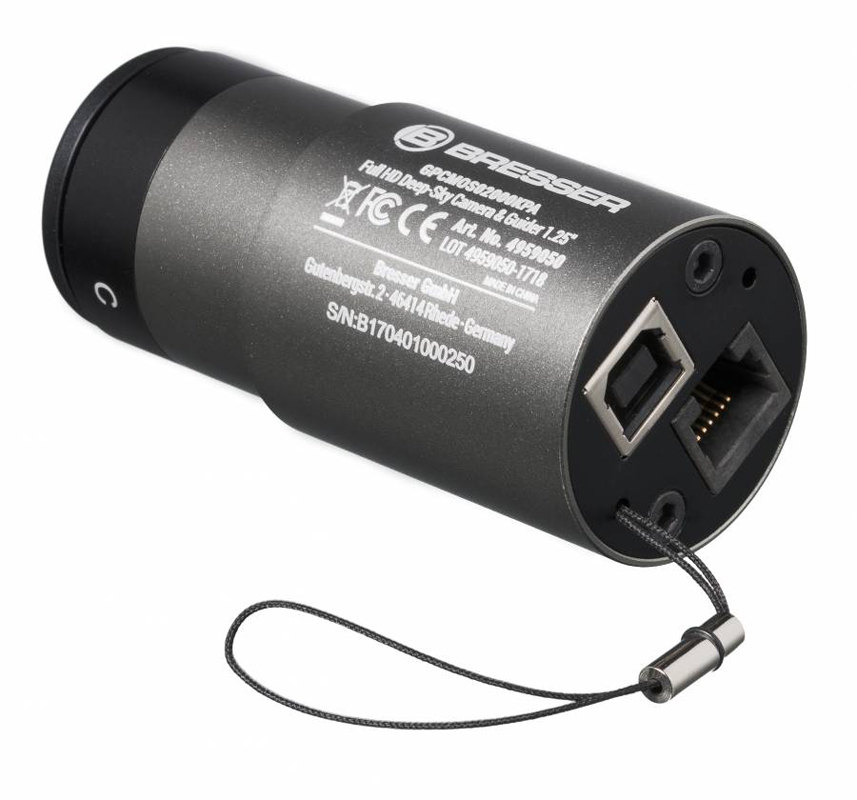

Camera type: BRESSER/Touptek GPCMOS02000KPA color
Sensor: SONY IMX290 CMOS color , back-illuminated
Image and video size: Full HD 1936 x 1096 Pixel (video 15 FPS)
Native sensor size in pixel: 1936 x 1096
Exposure times: 66µs bis 16min
Binning: YES , 2x2
Megapixel: 2,1 MP
Sensor size in mm: 5,6 x 3,1
Pixel size: 2,9 µm x 2,9 µm
Bit depth: 8/12 switchable
ST-4 compatible autoguider: YES
CNC machined housing made from Aluminum
Protection strap at camera housing
Camera barrel diameter: 1,25" ( 31,7mm)
Camera connecting thread: C-Mount + 1,25" filter thread
Computer interface: USB 2.0
Extension tube 1,25" included
No IR cut filter installed
Operating system: WINDOWS 7, 8 and 10
ASCOM driver included



Field of view for various focal lengths in mm (listed in arcminutes) :
400 mm - 48,2´x 27,3´
500 mm - 38,6´x 21,8´
600 mm - 32,1´x 18,2´
700 mm - 27,5´x 15,6´
800 mm - 24,1´x 13,6´
900 mm - 21,4´x 12,1´
1000 mm - 19,3´x 10,9´
1250 mm - 15,4´x 8,7´
1500 mm - 12,9´x 7,3´
1750 mm - 11,0´x 6,2´
2000 mm - 9,6´x 5,5´
