DESCRIPTION

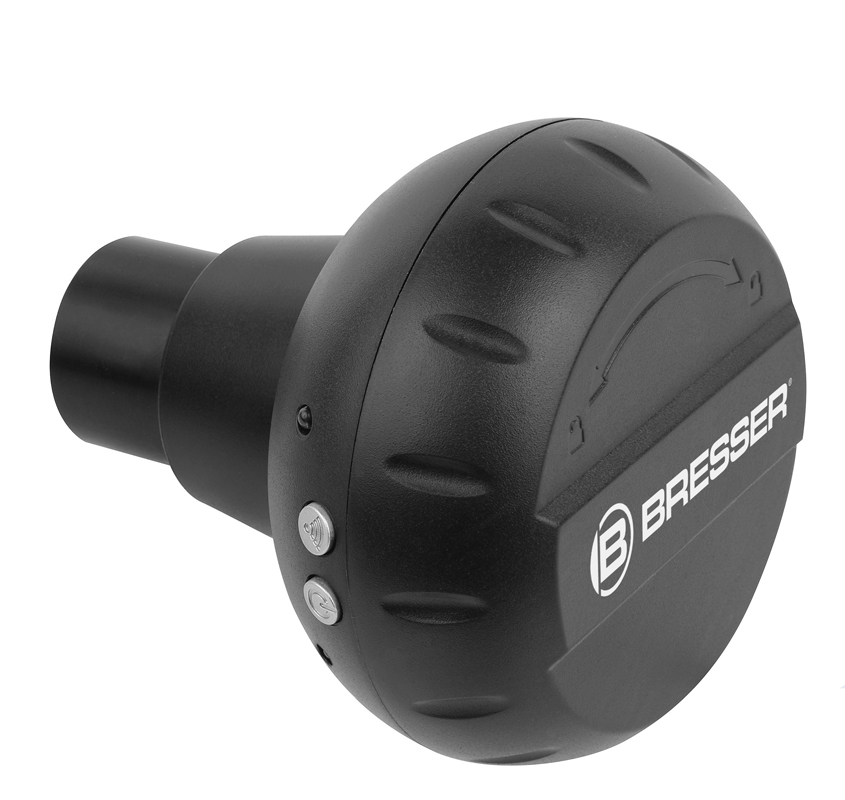

Nearly everyone that is starting to observe the night sky wants to store the images that he sees through the telescope. With the new BRESSER WIFI camera the first steps towards lunar and planetary imaging are extremely easy: just download the free app from the app-store or google play, install it onto a tablet or even smartphone, insert the camera into your telescope and you are ready to make high resolution pictures of the moon or planets.

SPECIFICATIONS :
Image output size: Wifi 1280x720, USB 640x480 Pixel
Video output size: Wifi HD 1280x720 (~24fps), USB 320x240 (~30fps) Pixel
WLAN-Standard: 802.11bgn
Power source: Mini-USB  +5V , 4 x LR6 (AA)
Power consumtion: 200mA
with Wifi: 350mA
Camera barrel diameter: 1,25" ( 31,7mm)
CMOS Sensor: 1/4” 1.3M CMOS Sensor
Physical Chip resolution:1280x1024 Pixel
Chipsize: 3,67x2,96 mm
Pixelsize: 2,79µm
Filter thread for 1.25" color and nebular filter inside
Extension tube for easy focussing included

FIED OF VIEW for Various Focal Lengths in MM
400 mm - 31,54´x 25,44´
500 mm - 25,23´x 20,35´
600 mm - 21,03´x 16,96´
700 mm - 18,02´x 14,54´
800 mm - 15,77´x 12,72´
900 mm - 14,02´x 11,31´
1000 mm - 12,62´x 10,18´
1250 mm - 10,09´x 8,14´
1500 mm - 8,41´x 6,78´
1750 mm - 7,21´x 5,81´
2000 mm - 3,21´x 5,09´

HIGHLIGHTS :
Lunar and Planetary imager with 1,3Megapixels
Wireless connection to tablet and smartphone
Works with IOS, Android
High effective magnification w. short focal length

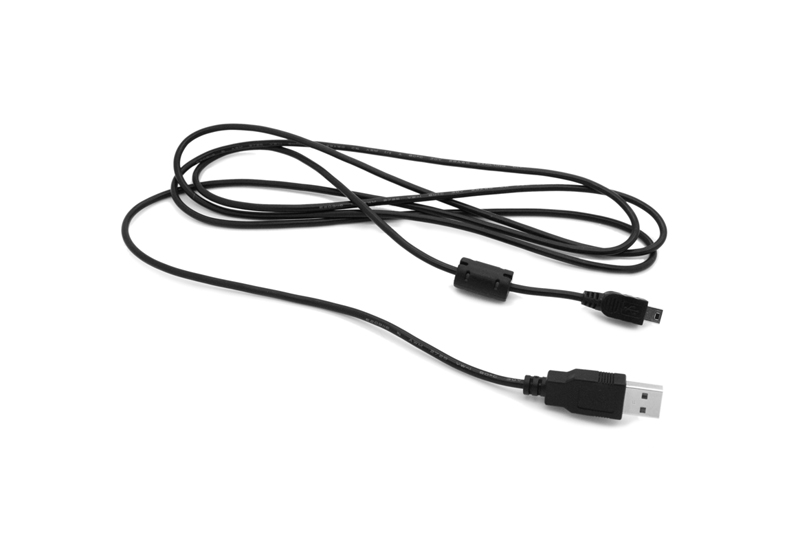

Contents: Camera, Mini-USB cable+manual+extension
Userfriendly camera for lunar and planetary imaging
Wifi-Range ~ 10m
Extension tube to reach focus included
Filter thread for 1.25" color and nebular filter inside

Instructions for Android
On certain Smartphones and versions of Android, permissions for the app must be activated manually. This is not due to the app, but to the settings of these smartphones and operating systems. For example: Share the location so that the App can connect to the camera's WiFi, enable or disable permissions: Open "Settings" on your Android device. Tap on "Apps & Notifications". Touch Location. Touch the app you want to update. Touch "Allow access only while using the app". Close "Settings" on your Android device.

TELESCOPE SPECIFICATION

TECHNICAL SPECIFICATIONS
Colour	black
Material	Plastic
DIMENSIONS & WEIGHTS
Total length	95 mm
Total width	88 mm
Total height	88 mm
Net weight (without access.)	120 g

Instructions for use in ENGLISH

Download Manual of 'BRESSER HD WiFi Camera .PDF format
