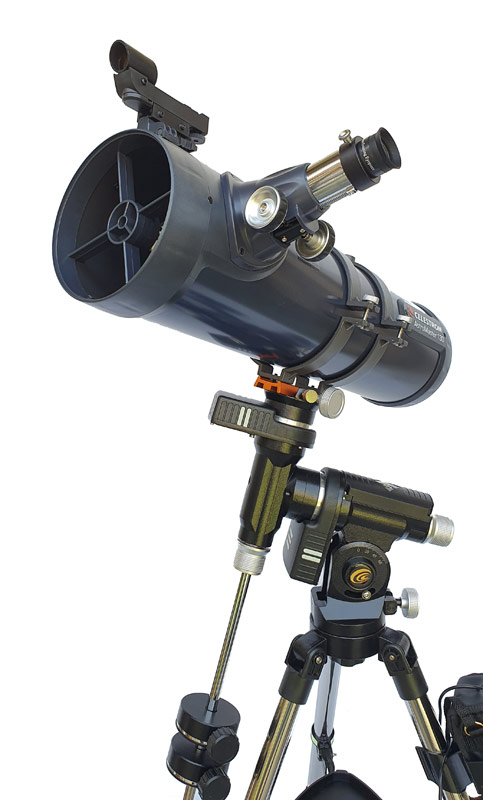

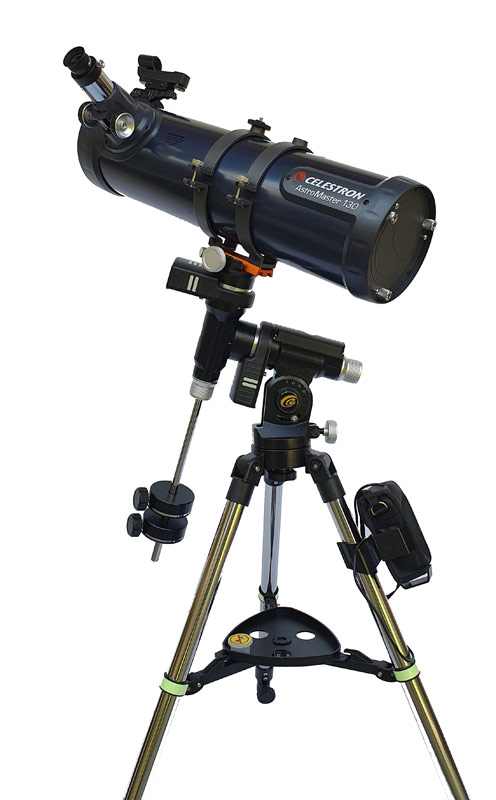

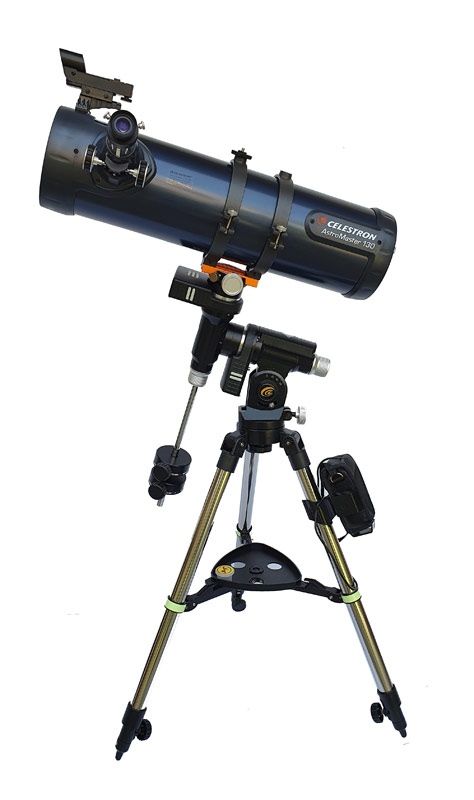

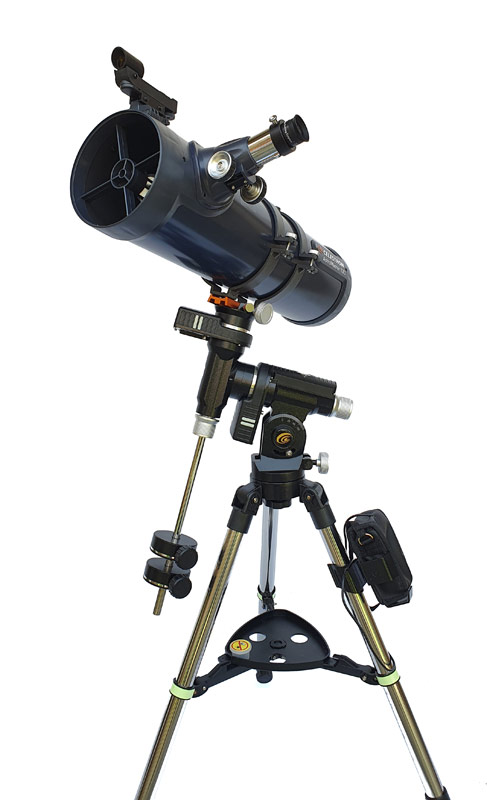

Introducing the Celestron 130 EQ Reflector Telescope
Discover our Solar System with the Celestron AstroMaster 130EQ! You’ll be ready to observe in minutes thanks to the quick and easy no-tool setup. The 130EQ provides bright, clear images of the Moon, planets, star clusters, and more for great nighttime viewing.

Explore Scientific GoTo Mount

The iEXOS-100 is a complete astronomical computerized Wifi or Wired GOTO Equatorial Tracker with integrated PMC-Eight electronics suitable for attaching Small Telescopes or DSLR Cameras attached to a standard Vixen Style Dovetail Plate. Also a ST-4 compatible autoguider port for active tracking control is included. Use with the free ExploreStars App for Tablets (Windows, Android, iOS), or with the free ASCOM Standards Compliant POTH Client from Explore Scientific (either wired or wireless) to work with virtually any sky software that supports ASCOM.

The iEXOS-100 utilizes a proven German equatorial mount design and Explore Scientific’s revolutionary PMC-Eight™ motion control system to flawlessly navigate the night sky and track objects as they journey across it. This combination provides superior observing and imaging performance without a prohibitive price tag. GOTO systems play an important role in the world of amateur astronomy because they ensure users spend less time searching for particular objects and more time observing and imaging. The PMC-Eight with its versatile connections supported with free to download apps for Window, Android, and iOS, or through the free to download ASCOM POTH Client to connect to your favorite ASCOM Compliant Astronomical Software, can allow you to control the telescope from a few feet away or by communicating computer-to-computer with an Internet connection from virtually anywhere in the world.

One of the standout features of the iEXOS-100 system is its German equatorial design. When it comes to tracking the stars with a telescope, there is nothing that compares to a German equatorial mount because it will follow objects as they rise in the east and set in the west. For observers, a German equatorial mount makes it easy to keep your celestial target in your eyepiece. For imagers, it helps you avoid common astrophotography pitfalls like field rotation. Before you can track an object, you need to find it, and that objective can be daunting when you’re faced with a vast expanse of inky black sky. The iEXOS-100 puts a powerful GOTO system in your arsenal of astronomical tools that takes the frustration out of navigating the night sky. This integrated version of Explore Scientific’s PMC-Eight™ system transcends the industry standard single processor by utilizing eight CPUs that operate independently of one another to focus on defined functions. This delegation of tasks among the processors results in a system that offers superior responsiveness, efficiency, reliability and astoundingly fast timing intervals for seamless images and accurate tracking.

Although it is internally complex, the GOTO system can be easily operated from your own Apple, Android or Windows tablet using the ExploreStars app, which has an intuitive nature that makes it simple and quick to align your telescope, navigate the stars and learn specifics about tens of thousands of celestial objects. This dynamic app is fueled by a database that is routinely updated to ensure it remains a relevant resource. Our commitment to creating a streamlined GOTO mount is obvious in other design choices. The iEXOS-100 has locking clutches that will let you quickly reposition your telescope from one side to the other and an altitude knob for smooth height adjustments. The mount base includes a small polar alignment tunnel that allows users to roughly align their observing setup with Polaris. It also has a simple bubble level that comes in handy when stabilizing your tripod. Other features include a bracket for holding the battery pack, which powers the PMC-Eight system™ through 8 C batteries (not included); two 1 kg counterweights for balancing; and glow-in-the-dark markers on certain points of the mount and tripod so you can stay oriented with your setup at night. The mount is designed to hold up to 7 kg of astronomical equipment.

IMPORTANT NOTE
To start using ExploreStars app, download the free app and download the celestial data set that contains the astronomical catalogs, reference images, and reference text. Simply by unzipping the ExploreStars folder containing the expanded celestial data set into your Pictures directory, you will expand the native database from a thousand objects to over seventy thousand objects.

Explore Scientific GoTo Mount FEATURES
Integrated Explore Scientific PMC-Eight™ Wifi GOTO system
Beautiful full graphical user interface using our very own ExploreStars OpenGoto
Wifi controlled by Tablet, Notebook or Desktop PC with 7'' or larger display, and Wifi function (computer device not included)
Needed system software of optional computer or tablet: WIN8.1, WIN10, iOS, Android 4.4 or higher
Classic four-button pattern and virtual joystick for guiding, centering, moving and slewing on the touch screen
Intuitive 2 star and 3 star alignment procedure
Includes a small polar alignment tunnel
Standard Vixen Style Dovetail Adapter
Mount load capacity up to 7 kg
Multiprocessor Micro Controller with 8 CPU´s
Micro-Stepper Motors and worm gears
Silent Belt-Drive System
Mini-USB port for INDI/ASCOM wired computer connection
ST-4 compatible autoguider port
INDI and ASCOM Driver available: YES, supports also Pulse-Guiding
YOU can write your own code and import it into this software
GPS-compatible and auto time / date settings are dependent on optional receiver on computer, tablet or phone
Glow-in-the-dark markings on mount and tripod
Weight mount-head: 4,0 kg ; weight tripod: 2,5 kg

What's Included
130/650 Reflector Telescope
Aluminum-Coated Primary Parabolic Mirror
20mm eyepiece
10mm eyepiece
The two eyepieces offer different magnifications for low and high powered views.
The 20mm has a built-in erect image corrector.
Finderscope (No Warranty)
+
Explore Scientific iEXOS-100 PMC-8 Wifi Goto Mount
Stainless steel tripod with bubble level
Counter weight 2 x 1,0 kg
Battery compartment 12 volts with bracket / (8 x C-Cells not included)
Coil-cord for DEC motor
Glow-in-the-dark markings on mount and tripod
ExploreStars Software via download for free
Instruction manual

Starry Night Software
Download Celestron’s Starry Night Software and learn about the night sky, celestial objects, and how to plan your next observing session. Celestron Starry Night Software is the premier astronomy software package on the market, providing resources and knowledge to view our solar system and beyond.

HIGHLIGHT
Explore Scientific German equatorial GoTo Automatic WiFI Mount
Adjustable, full height steel tripod with deluxe accessory tray
Quick and easy no-tool setup
Accessories include a 20mm and 10mm eyepiece, and a finderscope
Download Starry Night Basic Software with a 36,000 object database, printable sky maps and enhanced images including 3D renderings of stars, exoplanets, and galaxies.

TELESCOPE SPECIFICATION

Celestron Telescope Specifications
Optical Design:	Newtonian Reflector
Aperture:	130mm (5.11")
Focal Length:	650mm (25.6")
Focal Ratio:	f/5
Focal Length of Eyepiece 1:	20mm (.78") with built-in erect image corrector
Magnification of Eyepiece 1:	33x
Focal Length of Eyepiece 2:	10mm (.4") standard
Magnification of Eyepiece 2:	65x
Barlow Lens:	Not Included
Finderscope:	Built-on StarPointer™ red dot finderscope (No Warranty)
Optical Tube:	Aluminum
Highest Useful Magnification:	307x
Lowest Useful Magnification:	19x
Limiting Stellar Magnitude:	13.1
Resolution (Rayleigh):	1.07 arc seconds
Resolution (Dawes):	.89 arc seconds
Light Gathering Power (Compared to human eye):	345x
Secondary Mirror Obstruction:	44mm (1.73")
Secondary Mirror Obstruction by Diameter:	34%
Secondary Mirror Obstruction by Area:	11%
Optical Coatings:	TBD
Optical Tube Length:	610mm (24")
Optical Tube Diameter:	TBD
Optical Tube Weight:	TBD
Dovetail:	CG-3 Dovetail bar
Solar Warning	Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.



GOTO MOUNT SPECIFICATION
Item Number	ES-iEXOS-100
Mount head weight	9.45 lbs
Tripod weight	5.35 lbs
Tripod fully collapsed, no mount head:	25.5”
Tripod open, retracted legs, no mount head:	25”
Tripod open, retracted legs with the mount head:	38.5” at highest point, 36” to the center of the mounting bracket
Tripod open, legs fully extended, no mount head:	42”
Tripod open, legs fully extended with the mount head:	45” at highest point
Counterweights:	1 kg each
Mount weight capacity:	Approx. 9 lbs (equipment weight only),15 lbs Photographic (equipment and counterweights); Approx. 19 lbs Visual (equipment and counterweights)
Colour	black
Material	Aluminium
DIMENSIONS & WEIGHTS
Total length	1000 mm
Total width	1000 mm
Total height	1430 mm
Net Weight total (incl. accessories)	9000 g

Instructions for use in ENGLISH

Download Instruction Manual for GoTo Mount in .PDF format
