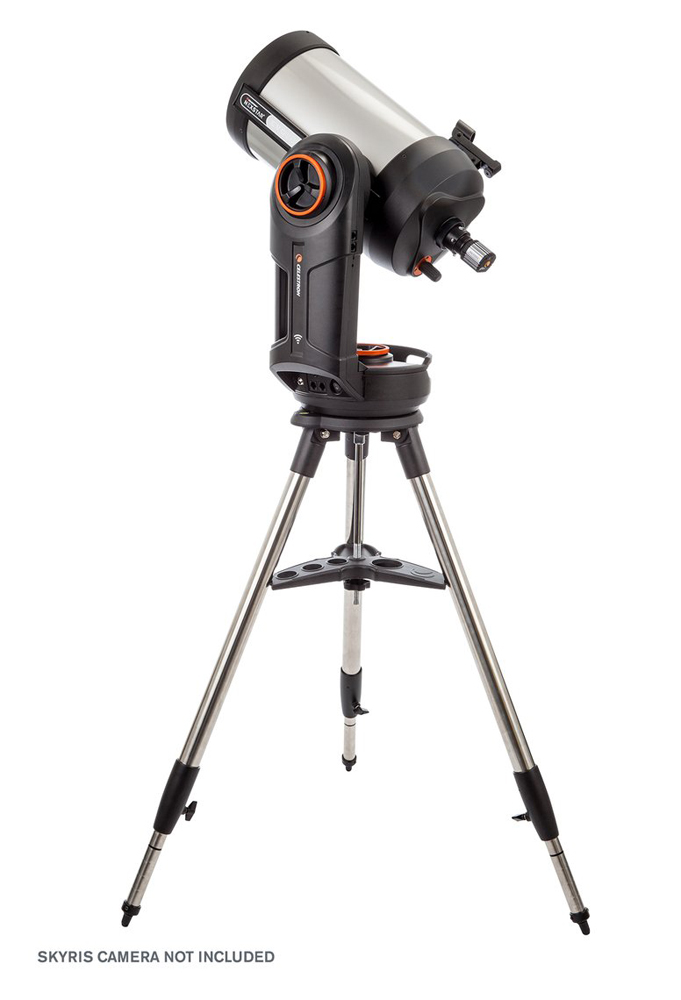

The NexStar Evolution is a Schmidt-Cassegrain telescope. Leave your hand control behind and slew to all the best celestial objects with a tap of your smartphone or tablet. Connect your device to NexStar Evolution’s built-in wireless network, and explore the universe with the Celestron mobile app for iOS and Android.

Use the planetarium interface to view the night sky in real time or display a list of celestial objects currently visible based on your time and location. Our proprietary SkyAlign alignment procedure is built right into the Celestron mobile app, so you’re ready to observe within minutes.

The most user-friendly telescope ever
Celestron engineers designed NexStar Evolution based on years of customer feedback. It offers many thoughtful design features that combine to provide you the best possible experience out under the stars.

Forget about batteries or an external power supply. For the first time ever on a consumer telescope, NexStar Evolution includes its own built-in battery. With this ultra-long life lithium-iron phosphate battery, you’ll be able to enjoy stargazing marathons up to 10 hours on a single charge. You can even use NexStar Evolution’s USB charge port to top off the other devices in your life that need to stay powered on during an observing session. An intelligent power management system senses when battery levels are low and goes into power-saving mode to keep your telescope running for as long as possible.

Setting up your NexStar Evolution is quick and painless with large, ergonomic handles. The all-metal tripod features a metal accessory tray with indentations for storing and carrying the tripod. During setup, leg etchings help you achieve a level, uniform height for your telescope. Manual clutches in both altitude and azimuth offer greater flexibility to manually point the telescope when powered off. Store up to 7 eyepieces in 2 accessory trays, one with an adjustable red LED illuminator.

Superior tracking fit for astroimaging
If you’re interested in astroimaging, the 8-inch NexStar Evolution is an excellent, affordable way to get started. It’s the only fork-mounted telescope in its price range that offers brass worm gears, along with improved motors. NexStar Evolution’s tracking accuracy is so impressive, you can capture images of deep-sky objects like the Orion Nebula by simply attaching your DSLR camera. As you progress in the hobby of astroimaging, you can add our HD Pro Wedge to achieve longer exposures for more detailed astrophotos. NexStar Evolution compatible with the wedge when used with the CPC tripod (sold separately).

Of course, the Schmidt-Cassegrain optical system offers bright, sharp views with StarBright XLT optical coatings—a great choice for visual observers and budding astroimagers alike.

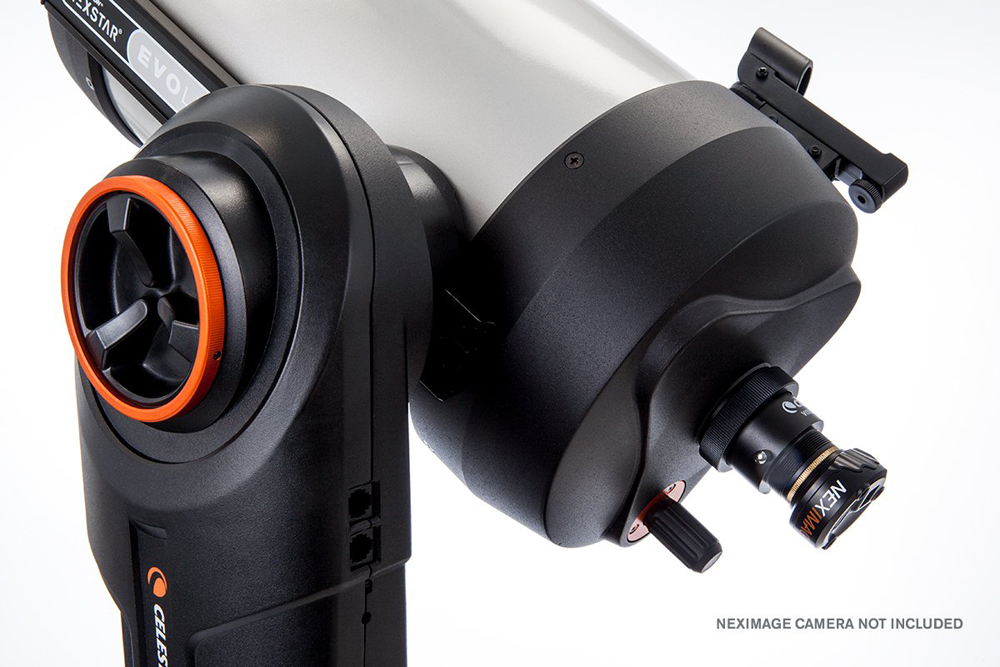

NexStar Evolution is equipped with 4 auxiliary ports--2 on top of the fork and 2 on the bottom. A classic NexStar+ hand control is included, but is not necessary when using NexStar Evolution with the mobile app. The telescope also includes a StarPointer finderscope, two 1.25” Plossl eyepieces, a 1.25” star diagonal, and an AC adapter.

WARRANTY : NO WARRANTY ON CELESTRON GOTO ELECTRONICS

TELESCOPE SPECIFICATION

OPTICAL TUBE SPECIFICATIONS
Optical Design:	Schmidt-Cassegrain
Aperture:	203.2mm (8")
Focal Length:	2032mm (80")
Focal Ratio:	f/10
Focal Length of Eyepiece 1:	40mm (1.57")
Magnification of Eyepiece 1:	51x
Focal Length of Eyepiece 2:	13mm (.51")
Magnification of Eyepiece 2:	156x
Finderscope:	Red Dot Finderscope (No Warranty)
Star Diagonal:	1.25" Star Diagonal
Optical Tube:	Aluminum
Highest Useful Magnification:	480x
Lowest Useful Magnification:	29x
Limiting Stellar Magnitude:	14
Resolution (Rayleigh):	0.69 arc seconds
Resolution (Dawes):	0.57 arc seconds
Light Gathering Power (Compared to human eye):	843x
Secondary Mirror Obstruction:	64mm (2.5")
Secondary Mirror Obstruction by Diameter:	31%
Secondary Mirror Obstruction by Area:	9.77%
Optical Coatings:	StarBright XLT
Optical Tube Length:	432mm (17")
Optical Tube Diameter:	238mm (9.37")
Optical Tube Weight:	12.5 lbs (5.67 kg)
Dovetail:	CG-5 Dovetail bar
Mount Type:	Computerized Altitude-Azimuth Single Fork Arm
Instrument load capacity:	25 lbs (11 kg)
Height adjustment range (includes mount and tripod):	1193.8mm - 1752.6mm (47" – 69")
Tripod Leg Diameter:	38.1mm (1.5") Stainless Steel
Mount Head Weight:	16 lbs (7 kg)
Accessory Tray:	Yes
Tripod Weight:	12 lbs (5.44 kg)
Slew Speeds:	9 slew speeds - max speed 4°/second
Tracking Rates:	Sidereal, Solar and Lunar
Tracking Modes:	Alt-Az, EQ North and EQ South
GPS:	N/A
Dovetail Compatibility:	CG-5 saddle plate
Number of Auxiliary Ports:	4 AUX Ports (Hand Control can use any of the AUX Ports)
Autoguide Port:	No
USB Port:	Yes, Hand Control input and Mount output
Power Requirements:	Internal 9 6V, 4 5Ah lithium iron phosphate battery (LiFePO4)
Motor Drive:	DC servo motors
Alignment Procedures:	SkyAlign, 1-Star Align, 2-Star Align, Auto 2-Star Align, Solar System Align, Quick-Align, Last Alignment, EQ North / EQ South Alignment (EQ align requires an equatorial wedge)
Periodic Error Correction:	No
Computerized Hand Control:	2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection
NexStar+ Database:	Over 40,000 including 220 of the best deep sky and solar system objects
Software:	Celestron Starry Night Special Edition Software and SkyPortal App
Total Kit Weight:	40.5 lbs (18.37 kg)
Included Items:	Optical tube Single Fork Arm Mount and Tripod Accessory Tray Integrated Lithium-iron battery NexStar+ Hand Control 40mm and 13mm eyepiece Red dot finderscope Visual Back Star Diagonal 4 plug AC adapter
Solar Warning	Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.

WARNING

This device focuses a lot of light.
Looking directly at the SUN through this device can result in partial or complete loss of vision.
For observing the SUN, we recommend you buy a 'Solar Safety Film' for this Telescope.

Buy 1000 OAKS Solarite Safety Film
