Advantages of RC Telescopes compared to MAC and SCT
F/9 is faster than a 6" SC or Mak
illuminated field is much bigger
you can attach 2" eyepieces and full size SLR/DSLR cameras without vignetting
two hyperboloidical mirrors with 96% reflectivity lead to a bright image
faster cool-down time and no dew problems because of open tube design without front correcting plate
enough back focus for all kinds of accessories
M90 extension tubes for easy reaching of the focus are optional. Spacer, to be placed between focuser and telescope
fixed mirrors and 2" Crayford focuser with 1:10 dual speed transmission - no problems with mirror shift
corrected field is much bigger compared with a 6" SC

Twilight I Adjustable AZ Mount
The Twilight II is a light-to-medium-duty alt-azimuth mount and tripod designed to quickly and easily accept small to medium sized refractors, such as the AR102 or ED102mm, and of course, the ED80mm. Lightweight, fast Newtonians will also match up nicely with the Explore Scientific Twilight I mount. As long as your telescope does not exceed 18 pounds and has a Vixen-Style Universal Dovetail bar for mounting the telescope to the mount head, you are good to go.

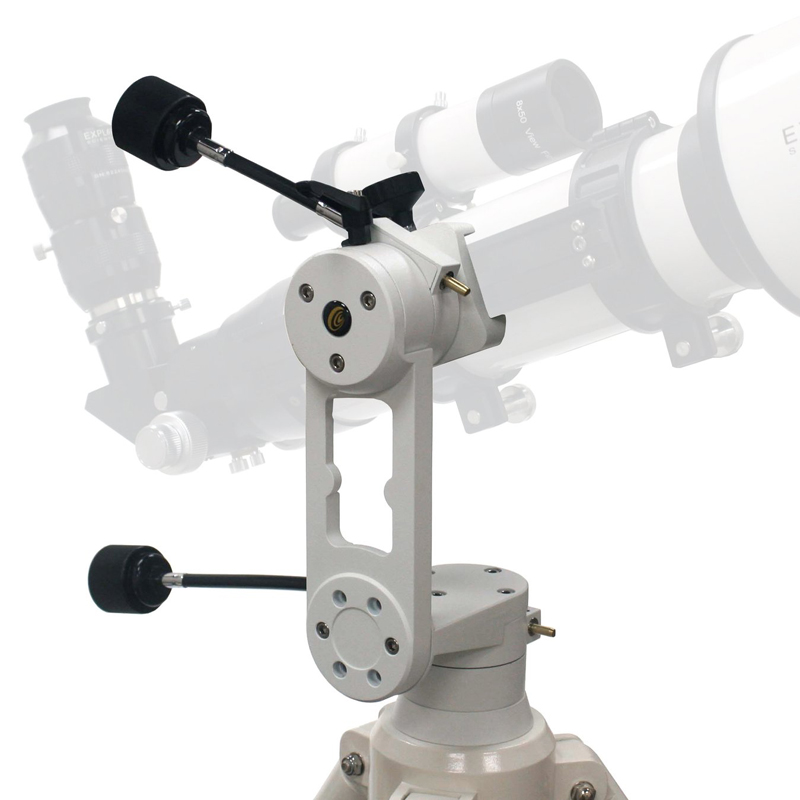

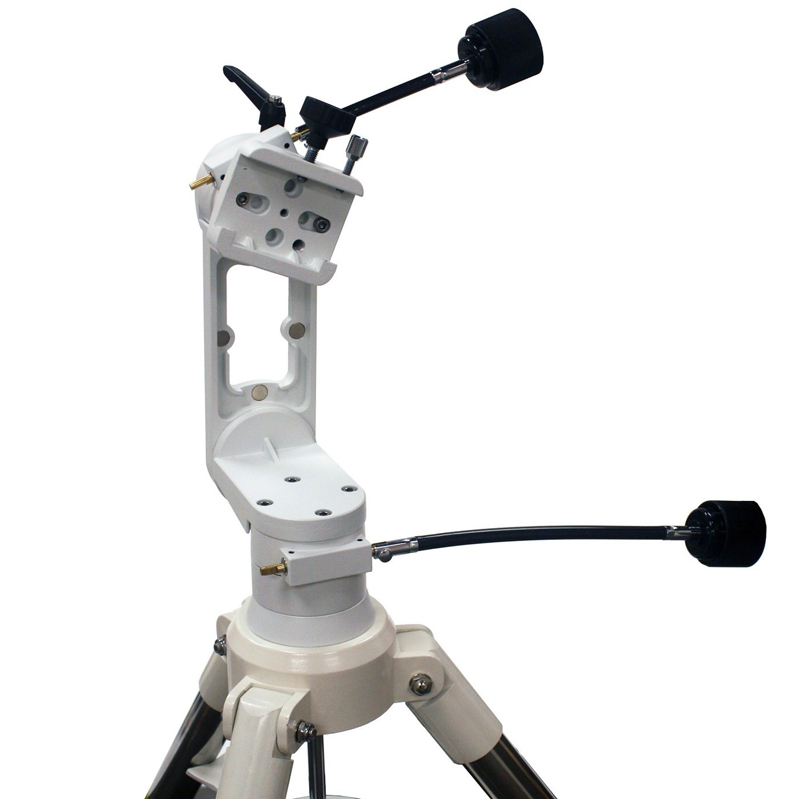

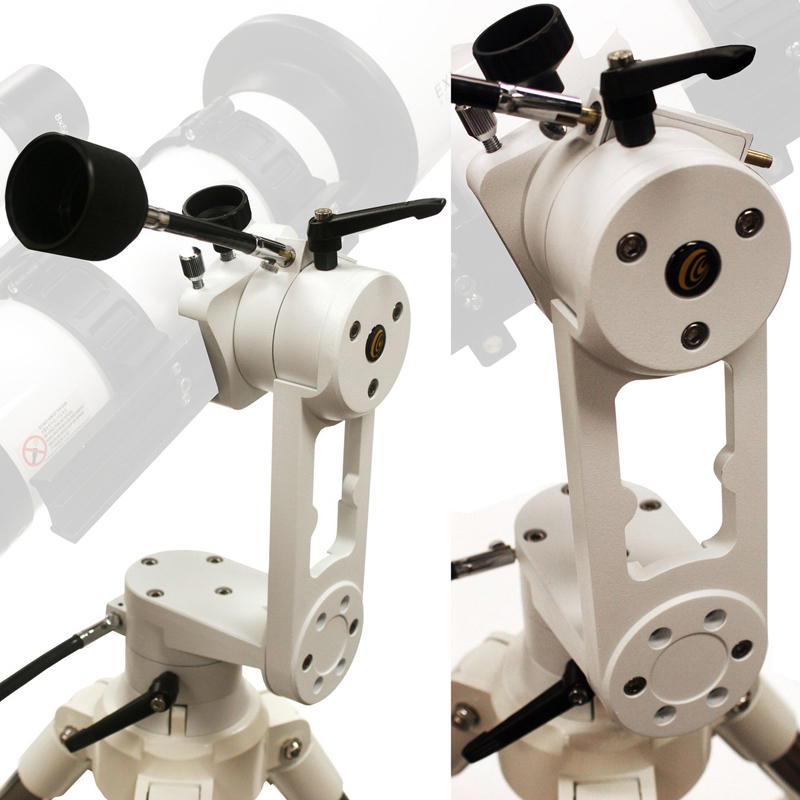

The Twilight II alt-azimuth mount head is made of powder-coated aluminum and there are worm gears on both axes. The adjustable angle head can be tilted forward or back at a 45° angle to allow more clearance for your telescope so you can point it straight up for viewing at the zenith.

Slow-motion control cables are attached on the vertical and horizontal axes, and are easy to turn during the night, even with gloves on, due to the over-sized knurled knobs that are attached to the end of each cable. They can be attached to either side of each axis to accommodate right or left-handed users, or different types of telescopes (e.g. refractors vs. Newtonian reflectors) for ease of adjustment.

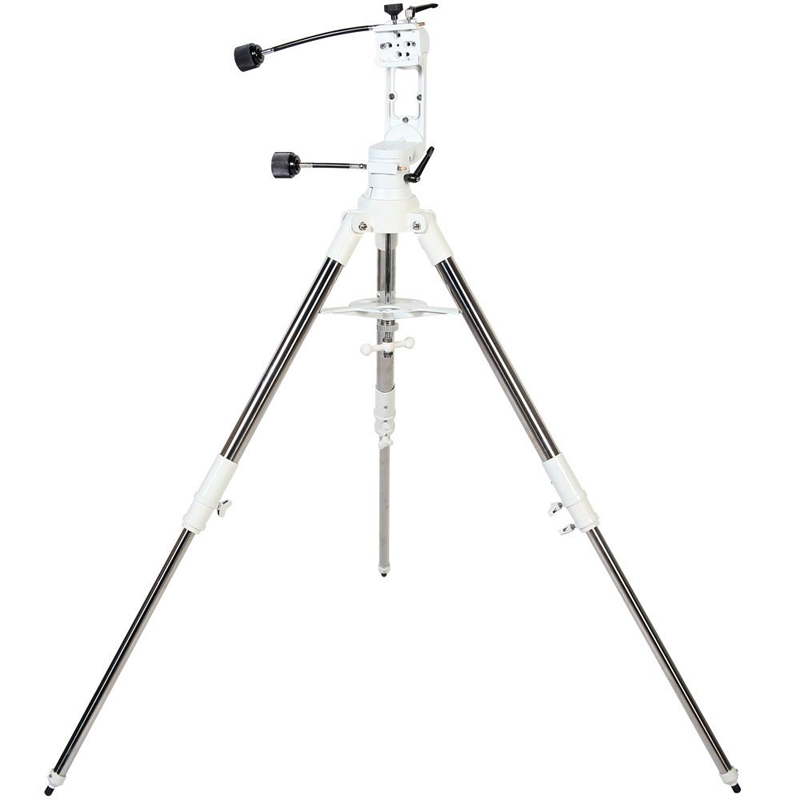

The stainless steel tripod that comes standard with the Twilight I mount has adjustable legs and a wide foot print of 42 inches, which makes the tripod more stable. A spreader bar locks against the inside of the legs to secure the tripod even further, and keep vibrations to a minimum.

TELESCOPE SPECIFICATION

TELESCOPE SPECIFICATION

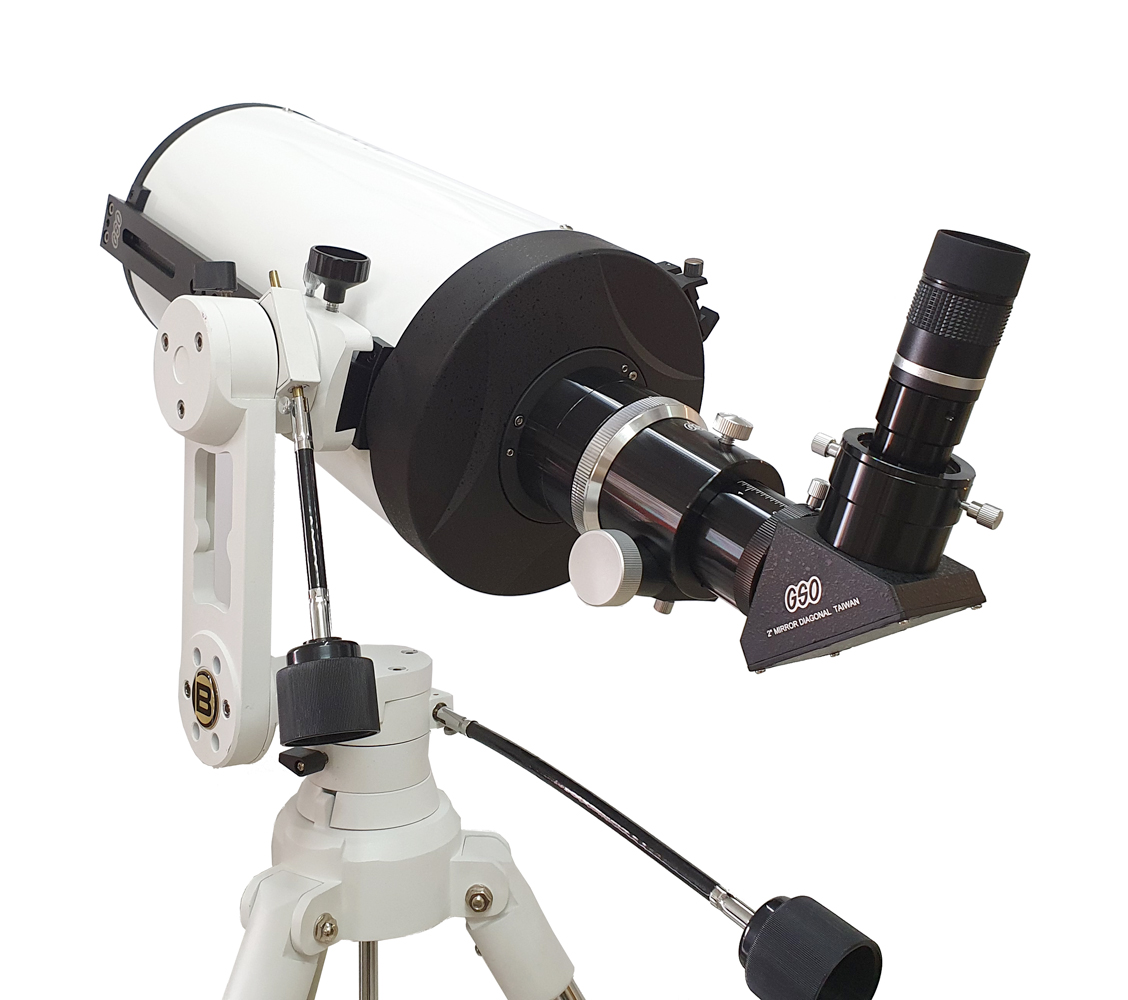

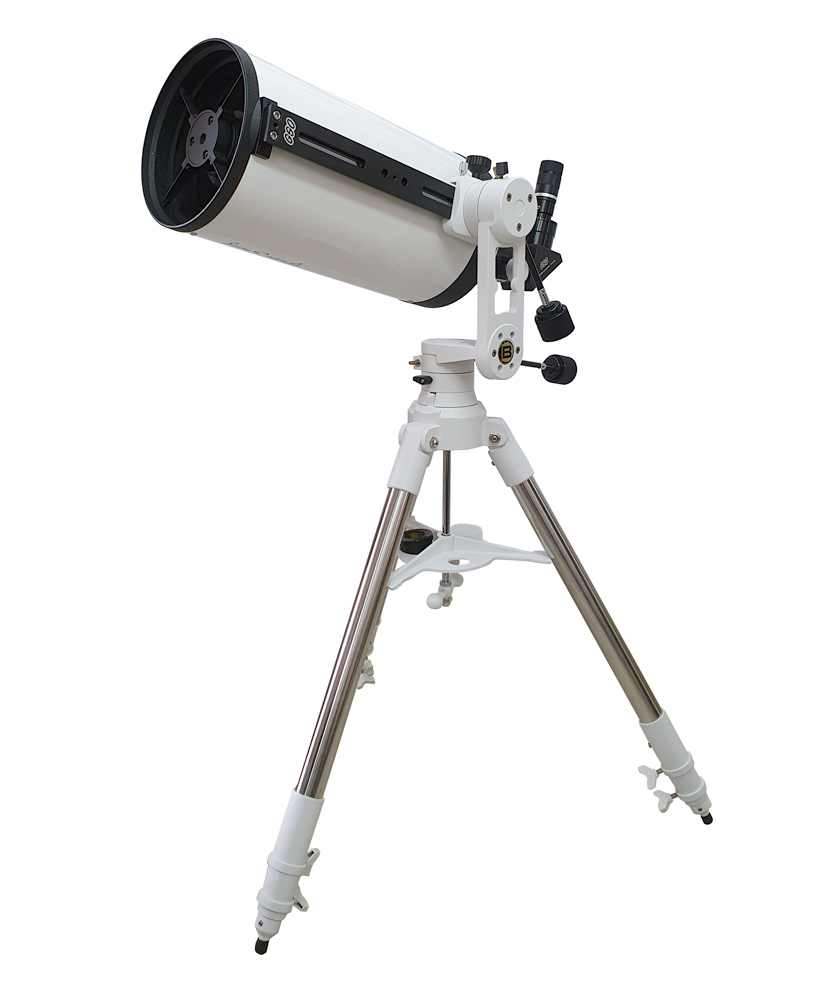

RC 6	6" f/9 Ritchey-Chrétien Telescope with Twilight Mount
Optical Design	Ritchey- Chretien
Diameter Primary Mirror	152 mm Primary Mirror 96% reflectivity dielectrically coated/minimum 1/12th wave, Quartz glass
Focal Length, Focal Ratio	1370 mm, f/9
Recommended Maximum Visual Power	33x through 300x approx.
Accepts Eyepiece Barrel Ø	50.8mm (2") to 31.7mm(1.25")
Focuser	1:10 Crayford focuser for extremely smooth focusing. The dual speed 1:10 focusing knob is particularly important for astro imaging. No image shift and up to 5kgs load capacity! The focuser accepts 2" and 1.25" accessories.
Eyepiece(s)	Your choice of any two GSO Premium Plossl Eyepiece 1.25'' any one from series:: 12mm / 9mm / 6mm / 4mm any one from series:: 15mm / 20mm / 25mm / 32mm (subject to availability in choices)
finderscope	6x30mm Fully multi-coated achromatic finder
Star Diagonal	not included

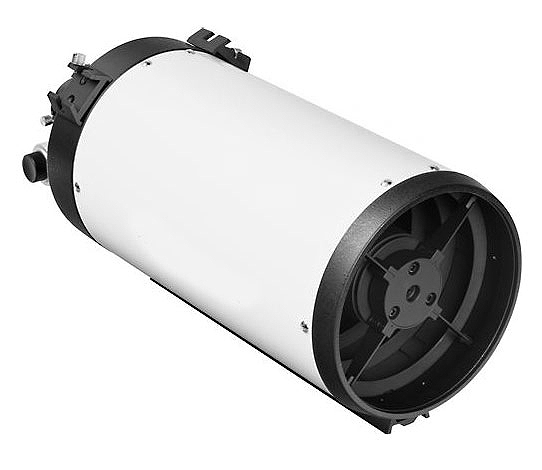

Computer-optimized baffle system	The inside of the tube is lined with computer-optimized baffles for optimum suppression of stray light.
Length of tube	500 mm incl. focuser
diameter of tube	191 mm
Optical Tube Net Weight	5.5 kg
Mount / Stand	Heavy Duty AZ Mount and steel tripod stand
Mounting Base Net Weight	5.3 kg
Tripod Net Weight	4.6 kg
Tripod	Height: 68cm - 108cm
Counterweight(s)	1x 4.5 kg
Max weight of the mounted device	about 13 kg (Optics)



TWILIGHT MOUNT SPECIFICATION
Model No.	TWILIGHT II ADJUSTABLE ANGLE ALT-AZIMUTH MOUNT - MAZ01-00
Tripod fully collapsed no mount head	29.5"
Tripod fully collapsed with head	42"
Tripod open, retracted legs no mount head	25"
Tripod open, retracted legs with the mount head	38.5" at highest point, 36" to the center of the mounting bracket
Tripod open, legs fully extended no mount head	42"
Tripod open, legs fully extended with the mount head	55.5" at highest point, 53" to the center of the mounting bracket
Mount head dimensions	14" x 7" x 4"
Foot print	42"
Weight tripod base	11lb; 5.0kg
Weight mount head	6.6lb; 3.0kg
Total weight	16.7lb; 7.6kg

WARNING

This device focuses a lot of light.
Looking directly at the SUN through this device can result in partial or complete loss of vision.
For observing the SUN, we recommend you buy a 'Solar Safety Film' for this Telescope.

Buy 1000 OAKS Solarite Safety Film

Instructions for use in ENGLISH

Download Instruction Manual in .PDF format

Free Items [ Subject to Availability ]

• 110 Messier Object Locator - A4 size front back colour print
• 109 Deep Sky CALDWELL Catalogue - A4 Size Front Back Colour Print
• Star Dial - Identifying Stars & Constellations
• Astronomical Telescope - User Guide
• The Moon Map Poster B/W chart unfold to 22"x26"
• Magnitude 5 Star Atlas Book
