SV Bony 70mm ED
SV Bony 70mm ED
SV Bony 70mm ED
SV Bony 70mm ED
SV Bony 70mm ED
SV Bony 70mm ED
SV Bony 70mm ED
SV Bony Auth Dealer
Multi-function OTA: suitable for shooting sun and moon, landscape scenery, deep space photography (works better with 1/2 or 1/3 inch sensor, the pixel size in 3μm-5μm, and need to match the SV193).
Features:
1. The appearance of the telescope is baked with high-end fine-grained paint, with exquisite appearance and delicate feel

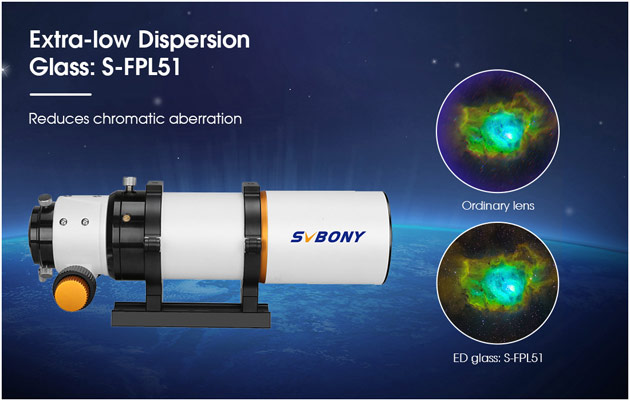

2. The objective lens features an S-FPL51 extra-low dispersion glass ED element, which eliminates chromatic aberration. This results in the best color correction for an ED doublet lens
3. The lens adopts optical processing and low polishing technology, which is carefully carved

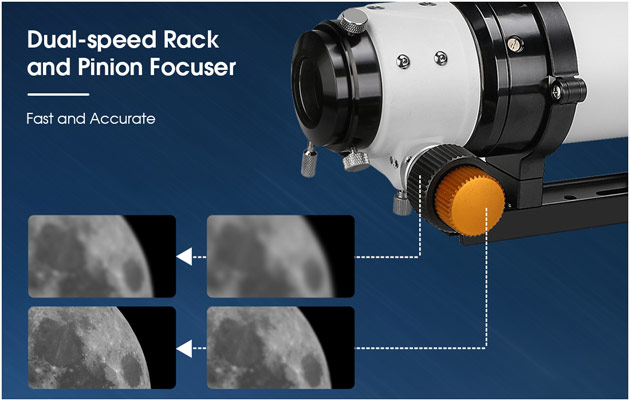

4. The deceleration ratio of the two-speed 2'' toothed focusing seat is 1:10, which makes it easy to achieve accurate focus
5. If the 70ED is matched with a large chip, A possible way is to:
The SV193 increases the field of view of the shot, which is sufficient for most DSOs. The stacked image edges may need to be cropped in the post-process to improve image quality.
| Product Name | SVBONY SV503 70F6 ED Astronomy Telescope |
| Type | Refractor |
| ED Glass | S-FPL51 |
| Coating | SMC |
| Aperture | 70mm / 2.75-Inch |
| Focal length | 420mm |
| Focal Ratio | f/6 |
| Type of Focuser | RAP (Rack and Pinion) |
| Gear Reduction | 1:10 Fine movement |

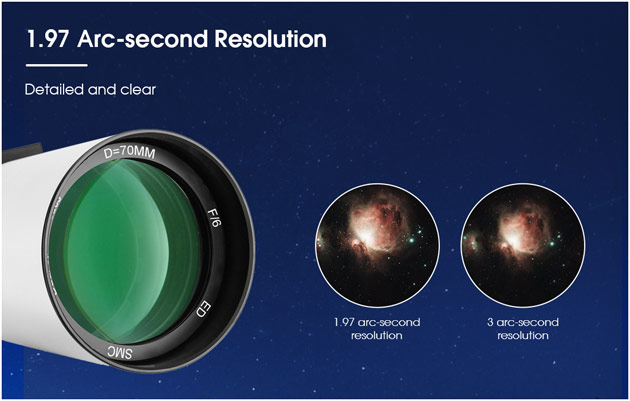

| Resolving capacity | 1.97" |
| Limit value | 11.3 |
| Light gathering capacity | 100x |
| Max. Useful magnification | 140x |
| Tube weight | 2.22kg |
| Tube outer diameter | 88mm |
| Tube material | Aluminium |

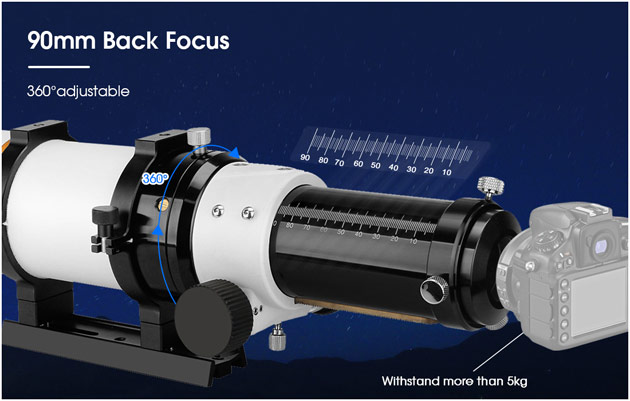

| Back Focus Length | 90mm |
| OTA Length | 318mm |

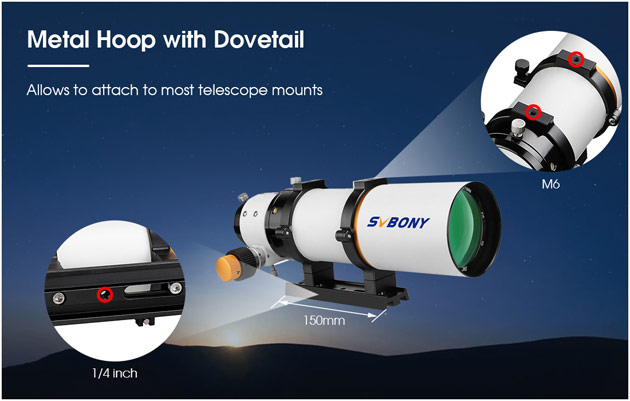

| Dovetail & Ring | Yes |
| Dovetail Length | 150mm |
