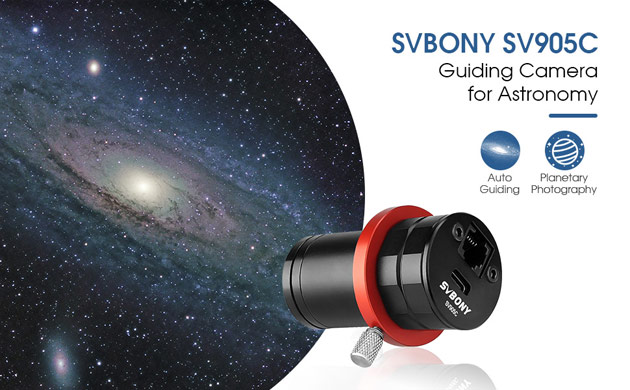

SV905C Telescope Camera with CMOS Sensor for Astrophotography
Perfect for Auto-Guiding or Planetary Imaging
₹ 18300 + 18% GST

Description:
Compact and highly sensitive 1.23-megapixel color camera with 1/3” CMOS 1280x960 sensor perfect for autoguiding or planetary imaging; small 3.75-micron pixels; high peak QE of 80% and low read noise allows tight tracking of faint guide stars;

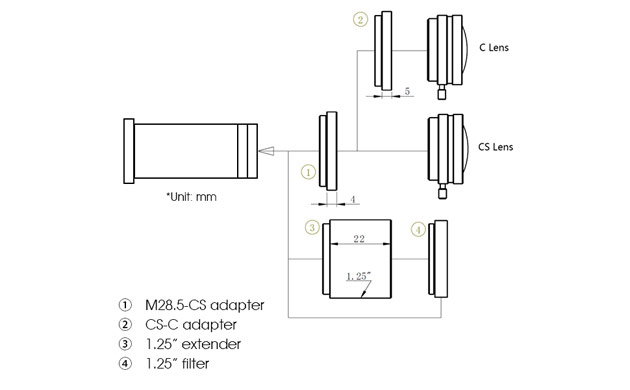

The front of the camera is equipped with a CS interface and a CS-C adapter ring; which can be matched with a CS lens or a C-mount lens;

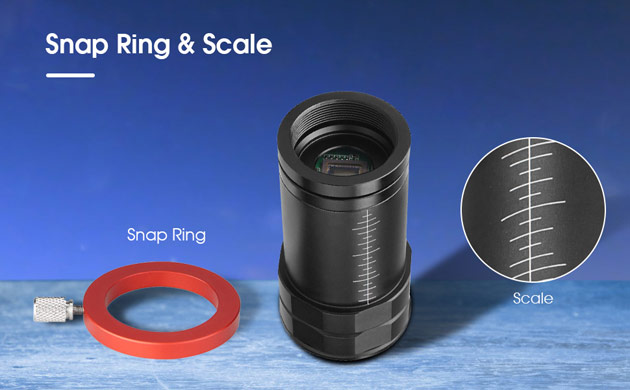

The product is designed with snap ring and scale mark to facilitate the use of the same guide lens for focusing and positioning.


Feature:
1. Compact and highly sensitive 1.2-megapixel color camera with 1/3” CMOS 1280x960 sensor perfect for auto-guiding or planetary imaging
2. Small 3.75-micron pixels, high peak QE of 75% and low read noise allows tight tracking of faint guide stars

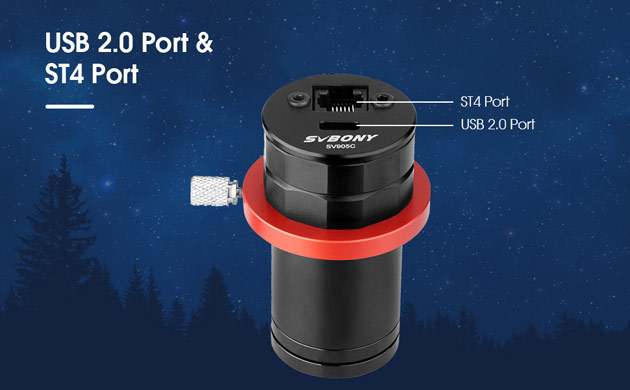

3. USB2.0 Type-C interface and ST4 port to connect directly to the auto-guider port of a telescope mount

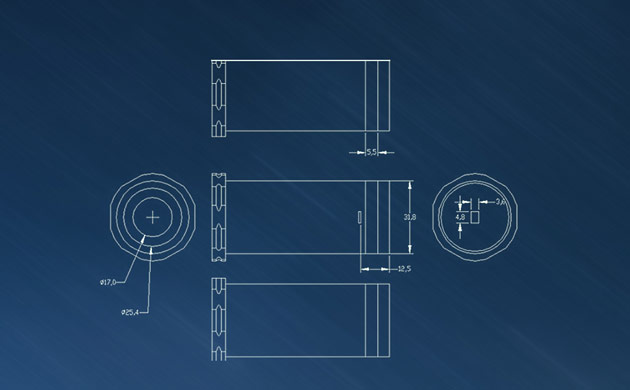

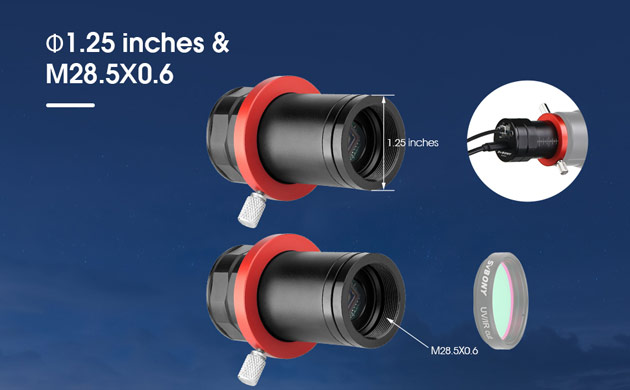

4. Compact form factor with a diameter of 36mm lets you slip the camera into a 1.25” focuser; the weights just 60g (2.1oz); AR-coated protective window to maximize transmission and protect the sensor; includes M28.5X0.6 female thread for astronomy filters
5. Software and drivers available from the manufacturer's website.

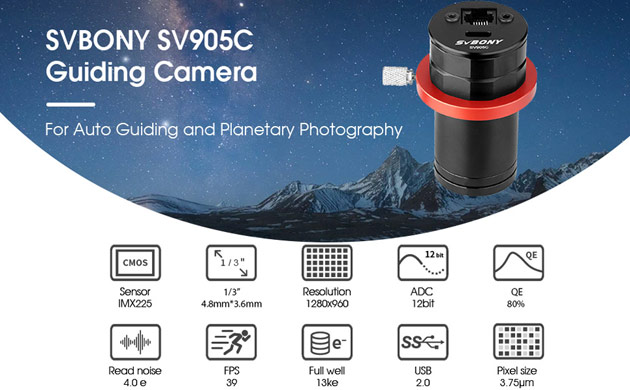

Model SV905C

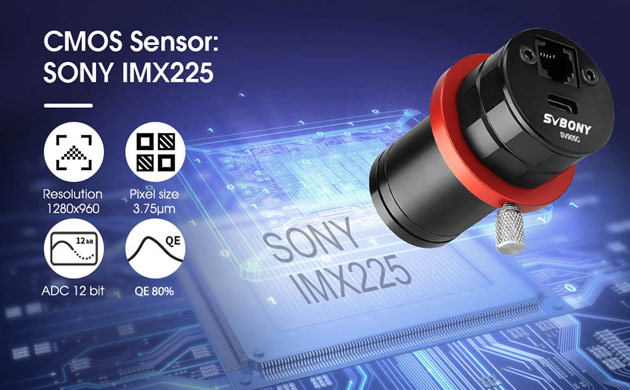

Sensor SONY IMX225​
USB Type TypeC USB2.0
Pixel Size 3.75µmx3.75µm
Image Area 4.8mm×3.6mm
Total pixels 1.2M pixel
Diagonal 6mm
Maximum Resolution 1280×960
Exposure Time 64us~20s
Gain 0-500
Maximum Frame Rate 39 FPS
Read noise 4.0 e
QE peak 80%
Shutter type Rolling Shutter
Full well charge 13ke
ADC 12 bit
ROI function Yes
Bin 1x1 2x2
Digital noise reduction HCG mode
Video format AVI mode
Communication interface DirectShow interface

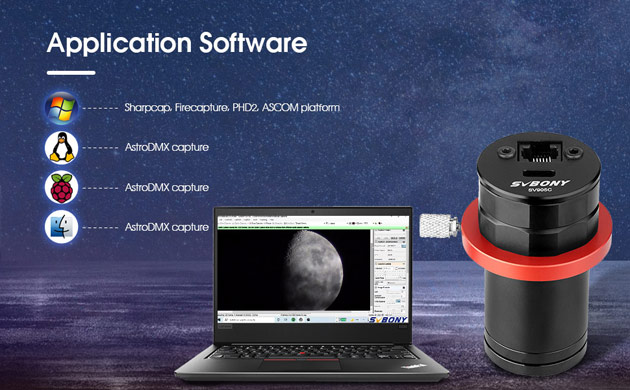

Application software Windows OS: Sharpcap, Firecapture,PHD2          ASCOM platform Linux  OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX​ Capture
Compatible system Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS
Working temperature - 5℃~45℃
Storage temperature - 20℃~60℃
Working humidity 20% RH-80% RH
Storage humidity 20% RH-95% RH
Power consumption <0.5W
Back intercept 8.5mm/12.5mm

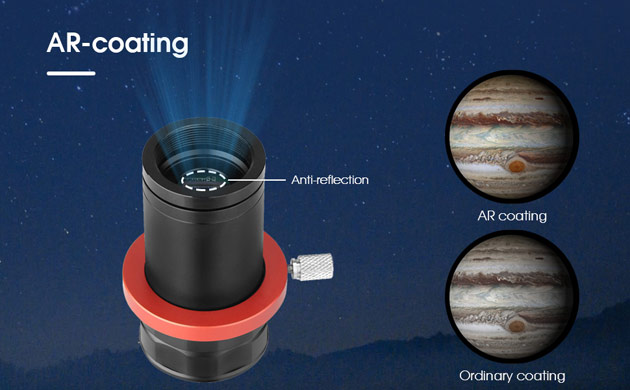

Protective glass AR Coating
weight(with parcel) 230g
Package size 162*132*70 mm
