SVBONY SV550, SVBONY 122mm ED APO Telescope, Astrophotography, Telescope

S V Bony

SVBONY SV550 APO Refractor Telescope Apochromatic Triplet 122mm F7 Telescope

With Case Bag for Deep Sky Astrophotography

₹ 156000 + 18% GST Arriving Soon | Pre Book Now Pay ₹ 10000 to Pre Book

TALK TO AN EXPERT : 919833974700

The SV550 APO is a compact refractor with 122mm aperture; f/7 focal ratio and 854mm focal length; a great travel telescope for astrophotography and observation; and even some fainter deep sky objects due to the higher limiting magnitude. It weighs 6.44kg/ 14.18lb; easy to carry out and comes with a carrying case bag!!
The SV550 122mm adopts a FPL-51 triplet apochromatic lens structure which contains one piece of ED glass; the triplet lens provides better correction of aberration and greatly reduces chromatic aberration and enhance the clarity and sharpness
The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10; which makes it easy to achieve accurate focus; the dual speed focuser can provide two focusing speeds by using a set of co-axial knobs; for fast focusing and fine focusing
The length of the dovetail is as high as 300mm; it can maintain the balance to the greatest extent; and it will be more convenient in the adjustment process.

SVBONY SV550 APO Refractor Telescope - One Small Upgrade, One Giant Leap

The SV550 APO triplet refractor is a compact refractor with 122mm aperture, f/7 focal ratio and 854mm focal length, a great travel telescope for astrophotography and observation. The APO refractor is an absolutely upgraded version of the SV550 80mm. The refractor gathers more light, and offers more clear and detailed images, suitable for deep sky photography and observation, for galaxies, nebulae, star clusters and even some fainter deep sky objects, due to the higher limiting magnitude.

SV550 122 F7 APO Refractor Telescope for Deep Sky Astrophotography

The OTA weighs only 6.44kg/ 14.18lb, easy to carry out when fitting into the carrying case. The length of the dovetail is as high as 300mm, longer than the length of most dovetails. It can maintain the balance to the greatest extent, and it will be more convenient in the adjustment process. The entire tube rings have 26 screw holes + a mounting screw handle. Such tube rings with so many screw holes can be compatible with more equipment installations, like Smart WIFI device, guide scope, astronomy camera etc., meeting various needs of installations.

FPL51 Triplet > FPL53 Doublet -- Just For Better Clarity

The SV550 122mm adopts a FPL-51 triplet apochromatic lens structure which contains one piece of ED glass. The triplet lens provides better correction of aberration and significantly reduces chromatic aberration and enhance the clarity and sharpness.

R&P Dual Speed Focuser

The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, for fast focusing and fine focusing.

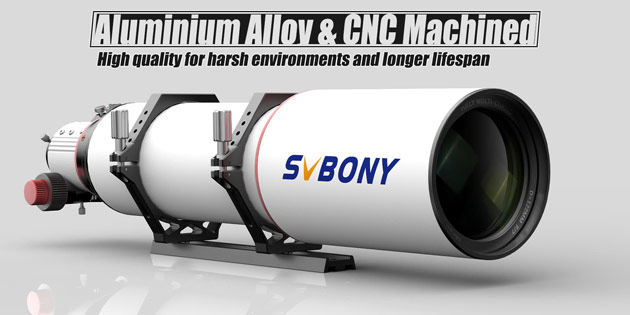

Aluminium Alloy & CNC Machined

The SV550 refractor is designed with Aluminium Alloy & CNC Machined, which makes it have high quality for harsh environments and longer lifespan.

Compatible With 2-inch Interface & M63*1 Threads

The SV550 refractor is compatible with 2-inch and M63*1 accessories. The front is a 2-inch adapter for connecting a camera or 2-inch accessories; Rotating off the adapter, here threaded the M63*1 threads, for connecting the SV209 field flattener or other M63*1 accessories.

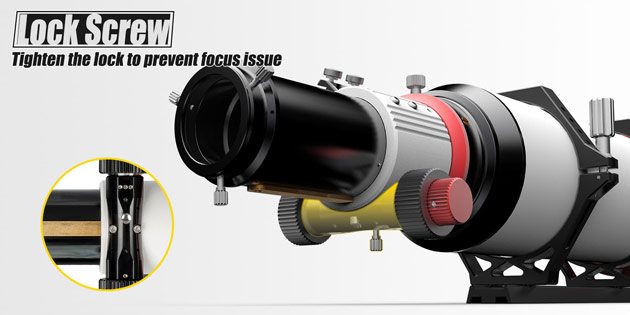

Lock Screw--Tighten The Lock To Prevent Focus Issue

The entire tube rings have 26 screw holes + a mounting screw handle. Such tube rings with so many screw holes can be compatible with more equipment installations, like Smart WIFI device, guide scope, astronomy camera etc., meeting various needs of installations.

For EAF Installation

This SV550 122 APO is compatible with EAF focuser. To install the EAF, first you should remove the screw completely as shown. Then look inside the hole and slowly rotate the focuser until you see another set screw inside the hole. This screw actually secures the focusing knob to the shaft. Insert a wrench and loosen this screw. Note that there may be two of these screws, so rotate the focusing shaft one turn to be sure. The focus knob will slide off after that.

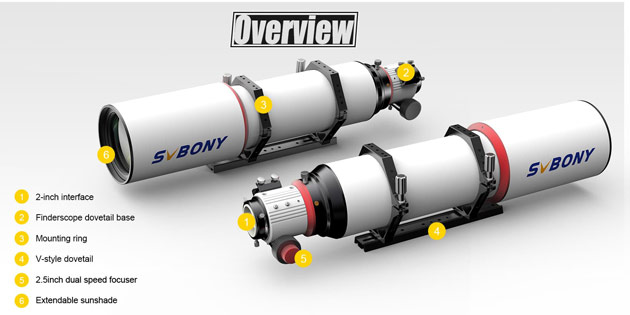

The Overview of The APO SV550

1. A 122mm aperture upgraded-An aperture upgrade, a big step stride
2. FPL51 Triplet>FPL53 Doublet-Just for better clarity
3. Multifunctional ring tube-Unlock more measures, experience diverse pleasures

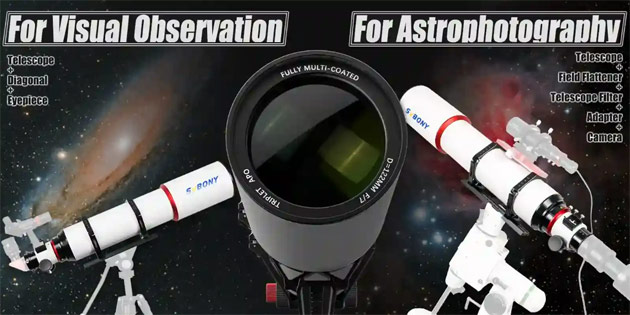

For Visual Observation & Astrophotography

The f/7 SV550 APO OTA Refratcor 122mm is a great travel telescope for both visual observation and astrophotography.

Brand	SVBONY
Model	SV550
Aperture	122mm
Focal Length	854mm
Focal Ratio	f/7
ED Glass	FPL51
Telescope Type	Refractor
Resolution	1.15 arc seconds
Coatings	Fully Multi-coated
Tube Material	Aluminum
Focuser	2.5" rack-and-pinion, dual speed (1/10)
Tube Travel	87mm
Visual Limiting Magnitude	12.3
Lens Design	Apochromatic
Dovetail Plate Length	300mm
Highest Useful Magnification	244x
Additional Thread	M63x1 female thread for adaptions
Dew Shield Type	Retractable
Tube Outer Diameter	154mm
Net Weight	6440g/14.18lb
Gross Weight	10000g
