SCOPE OF DELIVERY

• Truss Dobsonian Telescope
• Two-Speed 2-inch Rack & Pinion Focuser with 1.25-inch Adapter
• LED finder with standard finder slot
• Stray light shield for secondary cage
• Main mirror collimation tool
• Battery compartment with bag for fans
• Extension tube for focuser
• Reducer 2"/1.25"
• Instruction


FEATURES

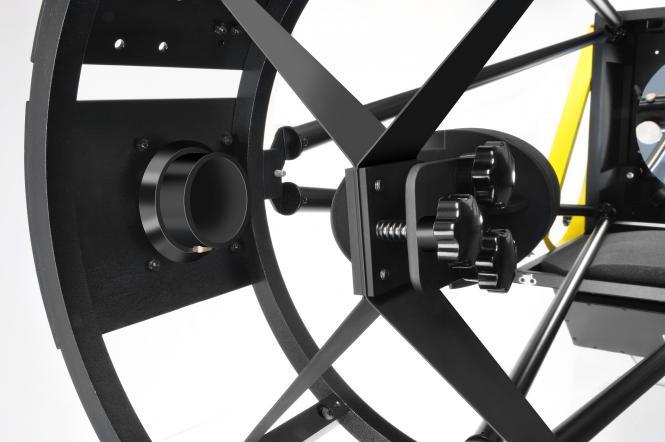

Modern secondary mechanics - the collimation is easily achieved without tools and keeps collimation well during transports
Modern primary mirror cell - the telescope mirror can be collimated from the front while looking through the eyepiece and is supported by a modern floatation system with radial roller bearings
Large altitude wheels provide smooth and precise movement even at high magnifications

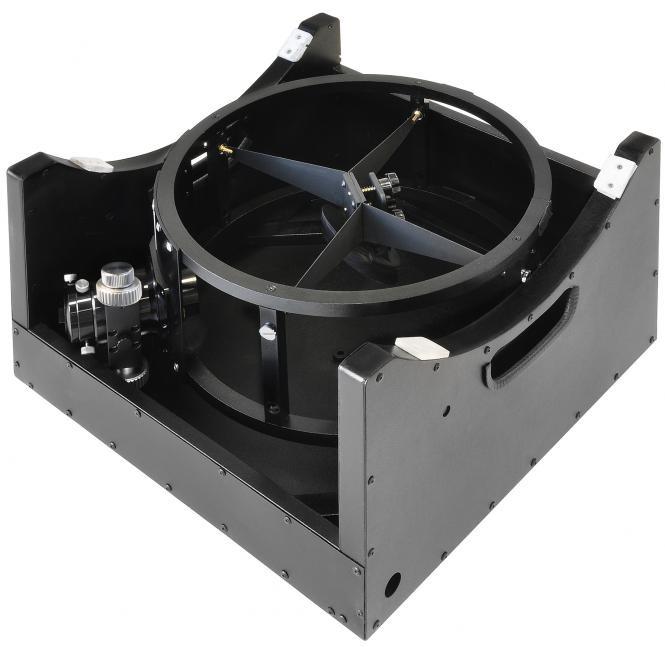

Secondary unit and altitude wheels fit into the rocker box and the mirror box includes a cover for transport so that the whole telescope breaks down into only two aluminium cases and the trusses
Extremely high rigidity construction
Dew-resistant because of aluminium construction: no deforming press board due to the exclusive use of metals
Lightweight: the aluminium profile/aluminium plate construction reduces the weight to about half of the mass of most press board designs of this price range

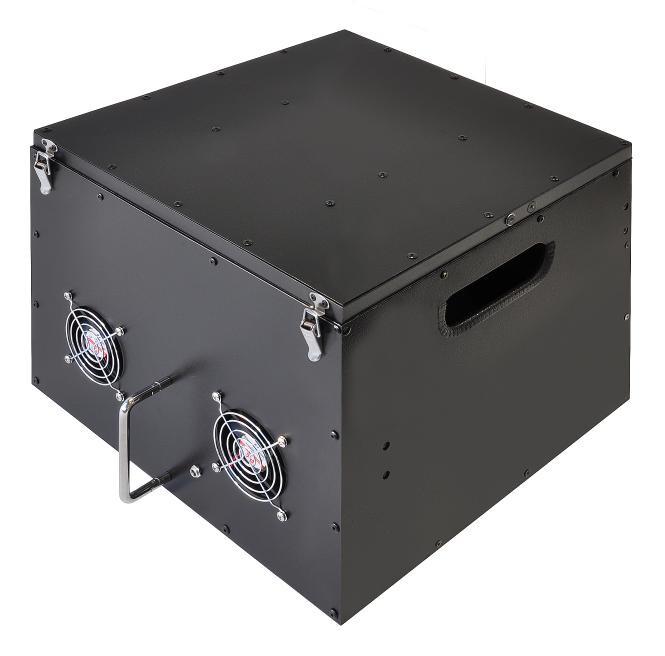

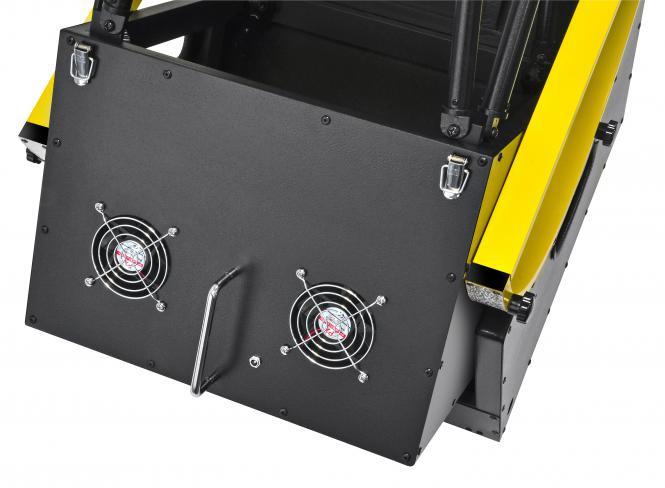

Two large radial fans for fast thermal equilibrium
Scope of delivery: Telescope, Manual, Reducer 2"/1.25", Red dot finder, Stray light shield for secondary cage, Main mirror collimation tool, Battery compartment with bag for fans, Extension tube for focuser

SPECIFICATION

• Truss-Dobsonian Telescope in full Aluminium construction
• NEW: Slider bearings made from TEFLON und GFK for smooth and precise movement
• NEW: Improved main mirror cell with completely redesigned mechanics
• NEW: Altitude bearings with new designed brake and friction system
• NEW: Universal finder slot to enable an easy finder upgrade
• NEW: Quick-lock fasteners with new springloaded design for comfortable use

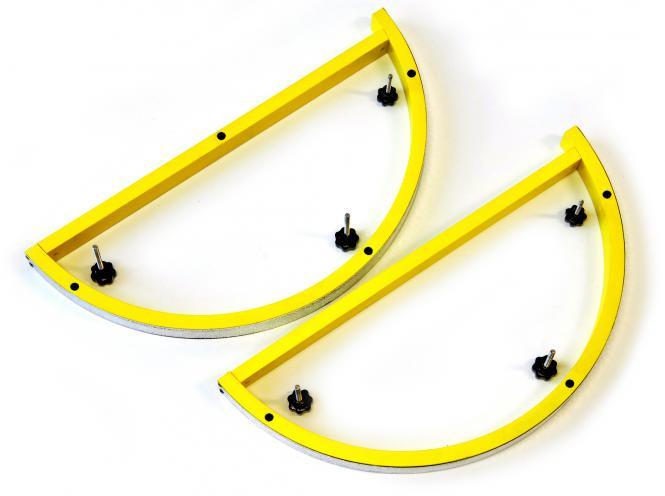

• NEW: Powder-coated yellow altitude wheels to improve durability
• NEW: Laser engraved central mark on main mirror

TELESCOPE SPECIFICATION

TELESCOPE SPECIFICATION

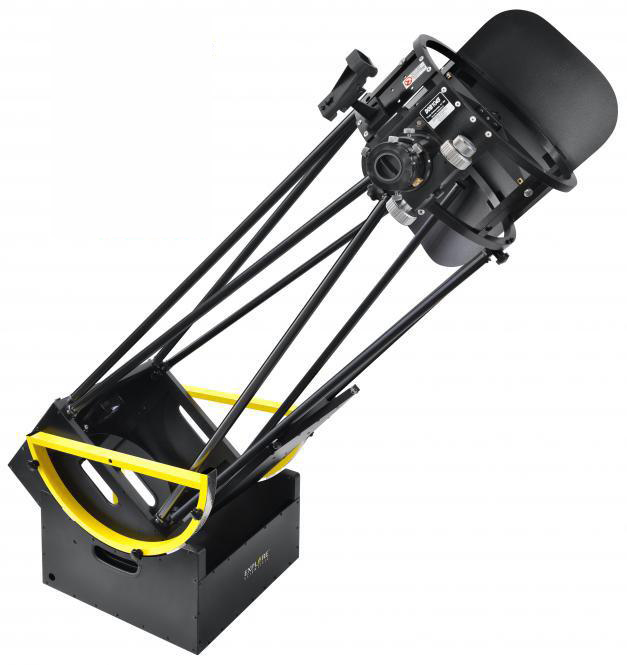

Model No.	EXPLORE SCIENTIFIC - GENERATION II - 10-INCH TRUSS TUBE DOBSONIAN TELESCOPE - DOB1045-00
Coatings	Aluminum with Quartz Overcoat
Primary Mirror Diameter	254mm
Secondary Mirror Diameter (M.A.)	67mm
Focal Length	1270mm
Focal Ratio	f/5
Resolving Power	0.456 arc-sec
Limiting Magnitude	14.7
Primary Mirror Weight	44.5 lbs
Rocker Box Weight	14.8 lbs.
Total Weight	27 KG
Finder	Red Dot View Finder
Shipping Weight	Within 30 Kg
Shipping Carton Dimension	50 x 52 x 92 cm3

WARNING

This device focuses a lot of light.
Looking directly at the SUN through this device can result in partial or complete loss of vision.
For observing the SUN, we recommend you buy a 'Solar Safety Film' for this Telescope.

Buy 1000 OAKS Solarite Safety Film

Instructions for use in ENGLISH

Download Instruction Manual for EXPLORE SCIENTIFIC 10" Truss Dobsonian in .PDF format
