ES ED APO 80MM
ES ED APO 80MM
ES ED APO 80MM
ES ED APO 80MM
By Mark Sibole
By Mark Sibole
M8 Lagoon Nebula | ES 80 ED TRIPLET F/6 APO | Starlight Express SXVR-H814 | by Jack Liu
M31 Andromeda Galaxy | ES 80 ED TRIPLET F/6 APO | Starlight Express SXVR-H814 | by Jack Liu
Horsehead & Flame Nebula | ES 80 ED TRIPLET F/6 APO | ZWO ASI 1600MM Cooled | Optolong H-Alpha 12nm H-Alpha Filter | by Stephan Hamel
Rosette Nebula | ES 80 ED TRIPLET F/6 APO | QHY 163 M cooled | Astrodon Ha 5nm 36mm, Astrodon Gen 2, LRGB | by John Robbins
INCLUDES
Three lens air-spaced ED-apochromat
Aperture 80mm; Focal length 480mm; f/6
Optical tube assembly rotatable 44mm dovetail

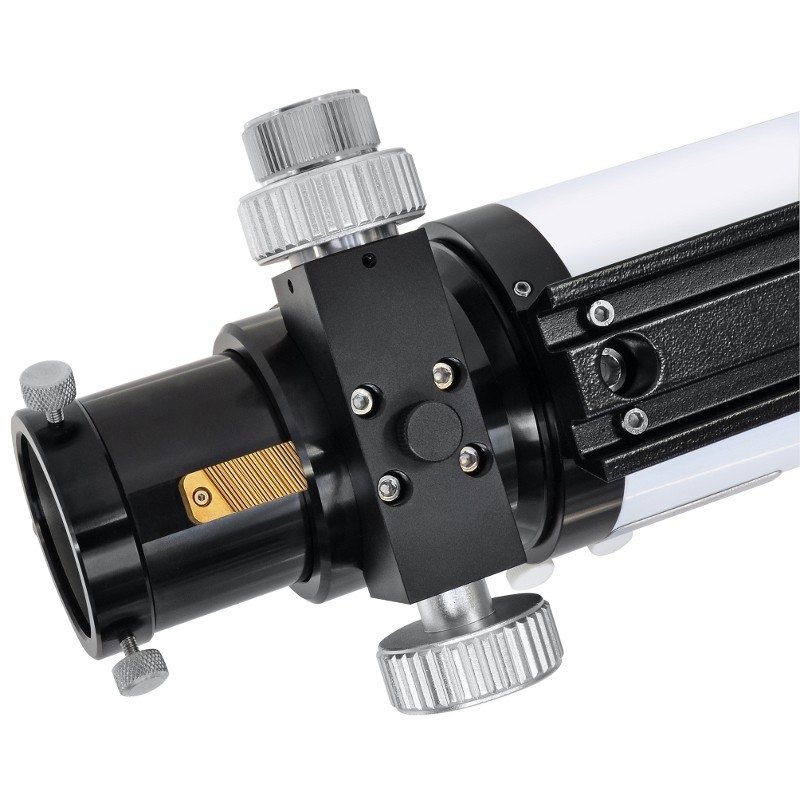

Focuser with 10:1 reduction

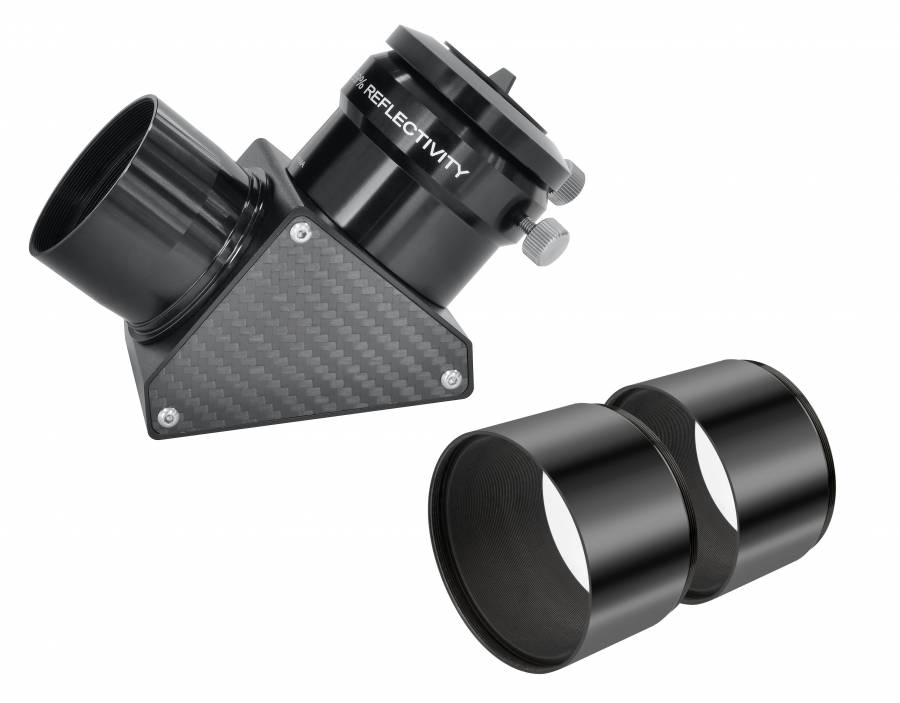

2" Star Diagonal 99% reflectivity

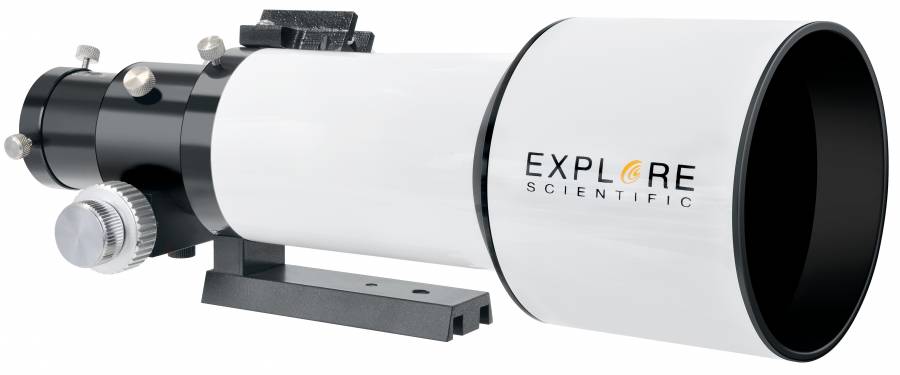

EXPLORE SCIENTIFIC ED APO 80mm f/6 FCD-1 Alu 2" R&P Focuser
The three-lens design of the EXPLORE SCIENTIFIC ED-Apochromats provides everything an amateur astronomer desires - at a reasonable price. The construction with Hoya FCD-1 ED glass has two air spaces and provides a level of correction so superior to the two-lens constructions, that are common in this price class, that you will see the difference immediately.
This excellent optical performance teams up with a high precision mechanics - the result is a telescope on a level that is setting a new standard in it´s price class. Astrophotographers will love this telescope - an optional field flattner is available and makes the telescope perfect even for cameras with a large chip format.
FEATURES
three lens air-spaced ED-apochromat
Hoya FCD01-ED glass
polystrehl of above 0.9
weight: 2,6kg
backfocus: 165mm above 2" adaptor
SCOPE OF DELIVERY
Optics with dovetail plate and finder slot
2" Star Diagonal 99% reflectivity
Dust caps for front-lens and focuser
| TECHNICAL DATA | |
|
Field of application |
|
|
Focus Group |
|
| Product Family | ED Refractor telescope |
|
|
|
| OPTICAL SPECIFICATIONS | |
| Optical design | Apochomatic Refractor |
| Maximum recommended magnification | 160 |
| ED glass | ✓ |
| Mirror/Lens diam. | 80 mm |
| Focal length | 480 mm |
| Aperture ratio | 6 |
| Angular resolution | 1.6 arc seconds |
| Type of coating | Enhanced Multilayer Desposition (EMD) |
| Width of image field width 24x36 mm receiver | 4.3 degrees |
| Height of image field width 24x36 mm receiver | 2.9 degrees |
| Mount Type | Optics without Mount |
|
|
|
| GENERAL TECHNICAL DATA | |
| Material OTA | Aluminium |
| Transportability | very good |
| Focusing system | 2" Rack-and-Pinion Focuser with helical gearing and 10:1 reduction |
| Colour | white |
| Dust protection caps | Dust protection caps for front lens and eyepiece holder |
|
|
|
| DIMENSIONS & WEIGHTS | |
| Total length | 340 mm |
| Total width | 120 mm |
| Total height | 120 mm |
| Net weight OTA (incl. accessories) | 2.6 kg |
| Tube length | 340 mm |
This device focuses a lot of light.
Looking directly at the SUN through this device can result in partial or complete loss of vision.
For observing the SUN, we recommend you buy a 'Solar Safety Film' for this Telescope.
