The STARTRACKER 60x700 AZ Telescope Refractor.
Objective lens diameter: 60 mm. Focal length: 700 mm.
The compact Startracker 60x700 AZ Refracting Telescope is a perfect choice for astronomy beginners. This telescope model makes a wonderful gift for an inquisitive teenager or an adult anyone ready to discover the amazing world of astronomical observations. The main features of the telescope are quality optics and easy intuitive control.
The 60x700 AZ is best suited for observing the Moon and Solar System planets. All optical elements are covered with anti-reflective coating for the best image quality. The 5x24 finder scope is supplied with the telescope for easy navigation to celestial objects.

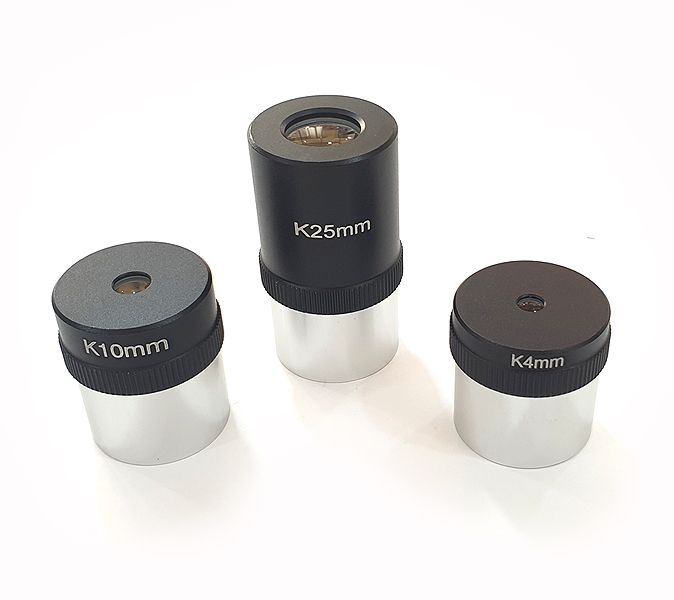

The kit also includes three eyepieces
1) K-25mm Eyepiece 1.25" dia
2) K-10mm Eyepiece 1.25" dia
3) K-4mm Eyepiece 1.25" dia
and also a 2x Barlow lens 1.25"
The telescope's optical tube is set up on the altazimuth mount which is installed on an aluminum tripod with adjustable height and accessory tray.
The Kit Includes : -
STARTRACKER 60x700 AZ Telescope
K-25mm Eyepiece 1.25" dia
K-10mm Eyepiece 1.25" dia
K-4mm Eyepiece 1.25" dia
2x Barlow lens 1.25" dia
1.5x Errecting Lens
90 Degree Diagonal 1.25"
5x24 optical finder scope
Altazimuth mount
Height Adjustable Aluminum tripod
User manual
Accessories Tray
| TELESCOPE SPECIFICATION | |
|
Optical Design |
Refractor Telescope-Optical Design: Fraunhofer refractor telescope (two-lens achromatic refractor |
| Diameter | 60mm |
| Focal Length | 700mm |
| Secondary Mirror Diameter | ----- |
| Focal Ratio | F/ 11.6 |
| Highest Practical Power | 120x |
| Faintest Steller Magnitude | 11.3 |
| Resolving Power | 1.92 Arc - Seconds. |
| Focuser diameter | RACK-AND-PINION Focuser .9 ". |
| Eyepiece 1.25" | Standard 1.25" eyepiece: K-25mm, K-10mm, K-4mm (M28.5*0.5) |
| Magnification with eyepiece | 28x, 70x and 175x |
| 2x Barlow lens | 56x, 140x and 350x |
| 1.5x Errecting Lens | 42x, 105x and 262x |
| Finder | 5x24 |
| Diagonal | 90 Degree Diagonal Mirror 1.25" |
| Mount type | Altazimuth Mount (stand height from 00cms to 00cms) |
| Slow-motion Control | Vertical |
| Accessories Tray | No-Tool Tray with Eyepiece holder |
| Tube dimension | 70cm length |
| Shipping Weight | Within 2.3 Kg approx |
| Shipping Carton Dimension | 73 x 24 x 16 cm3 |
| Shipping Courier Weight | 4.5 kg approx [with extra packaging layer for safety] |
This device focuses a lot of light.
Looking directly at the SUN through this device can result in partial or complete loss of vision.
For observing the SUN, we recommend you buy a 'Solar Safety Film' for this Telescope.
