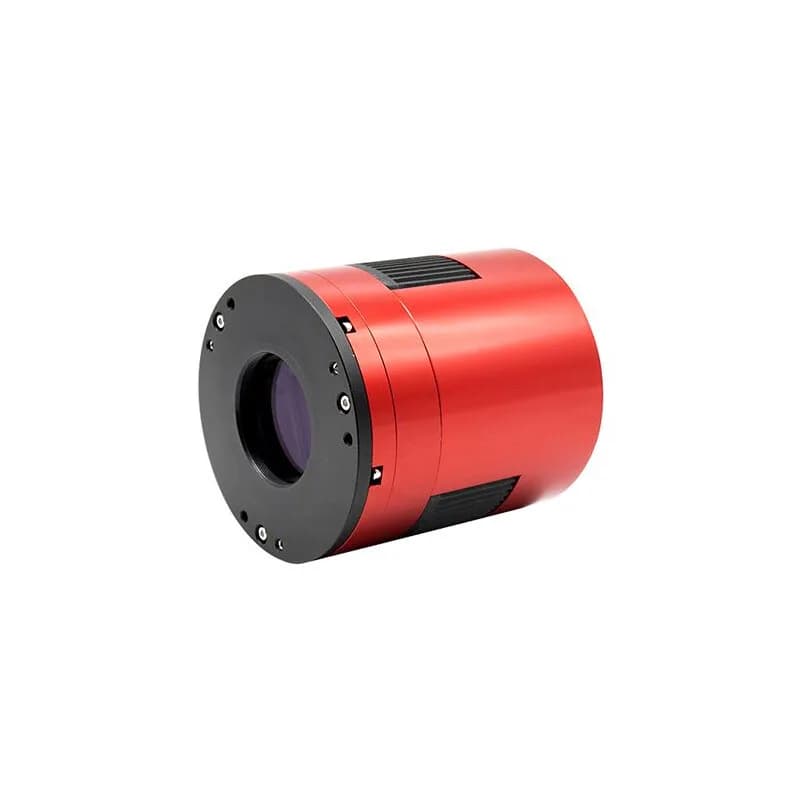

ZWO ASI2600-MM-P25 Mono Cooled Camera

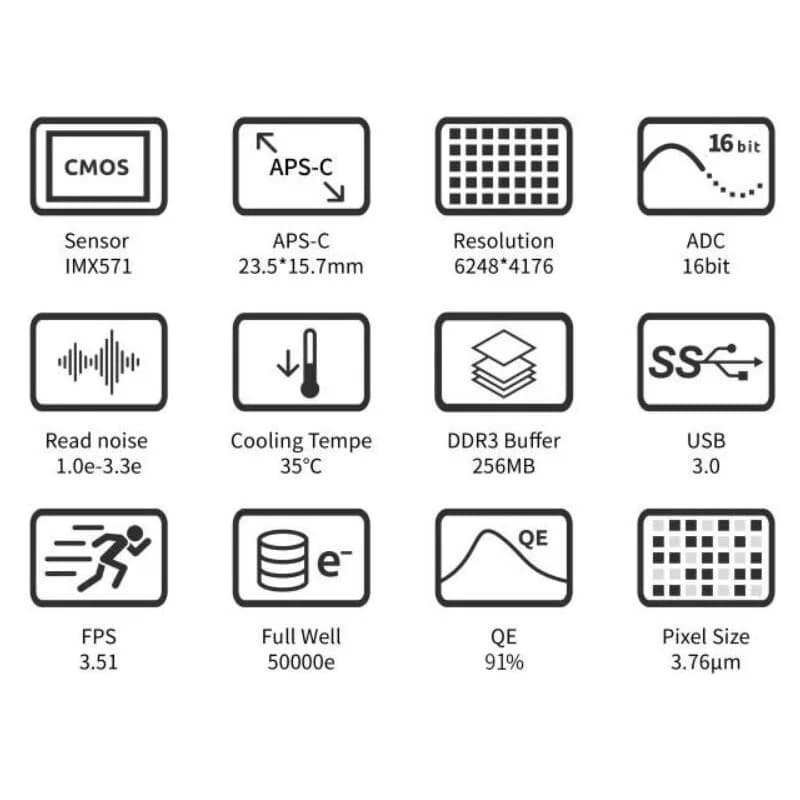

Technical parameters

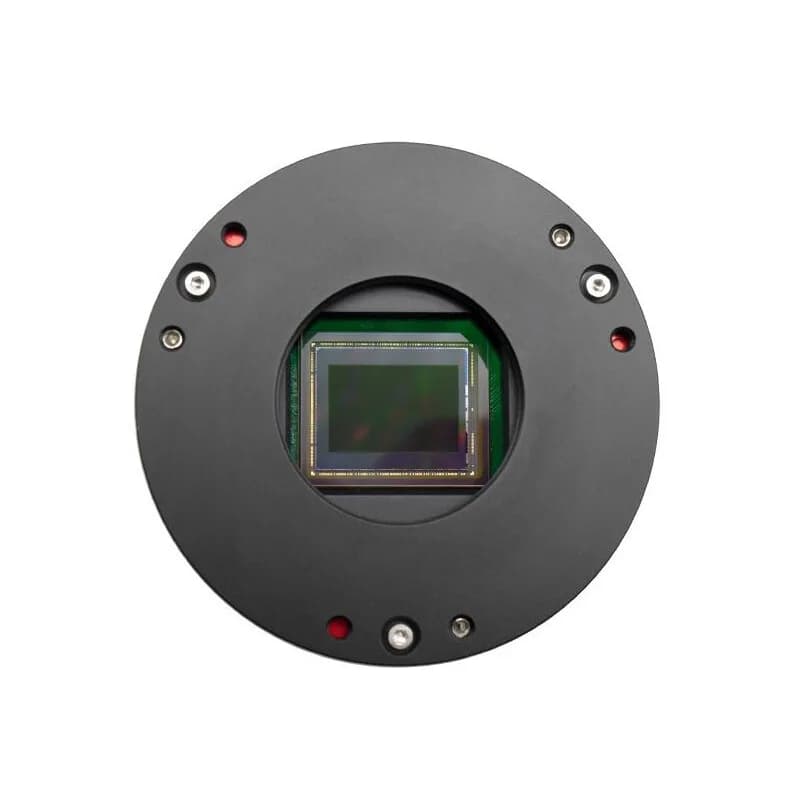

• matrix: Sony IMX571 (monochrome)
• matrix type: CMOS with backlight
• matrix size: 23.5 x 15.7 mm (APS-C format), diagonal 28.3 mm
• matrix resolution: 26 MPix, 6248 x 4176 px
• single pixel size: 3.76 µm
• capacity well of the potential: 50 ke

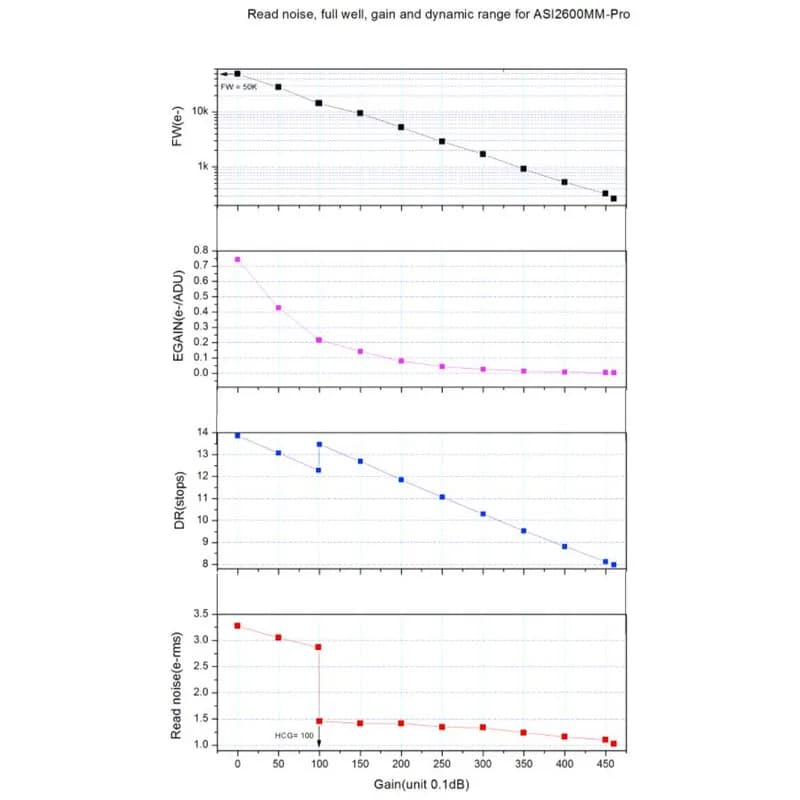

• reading noise: <1 - 3.3 e

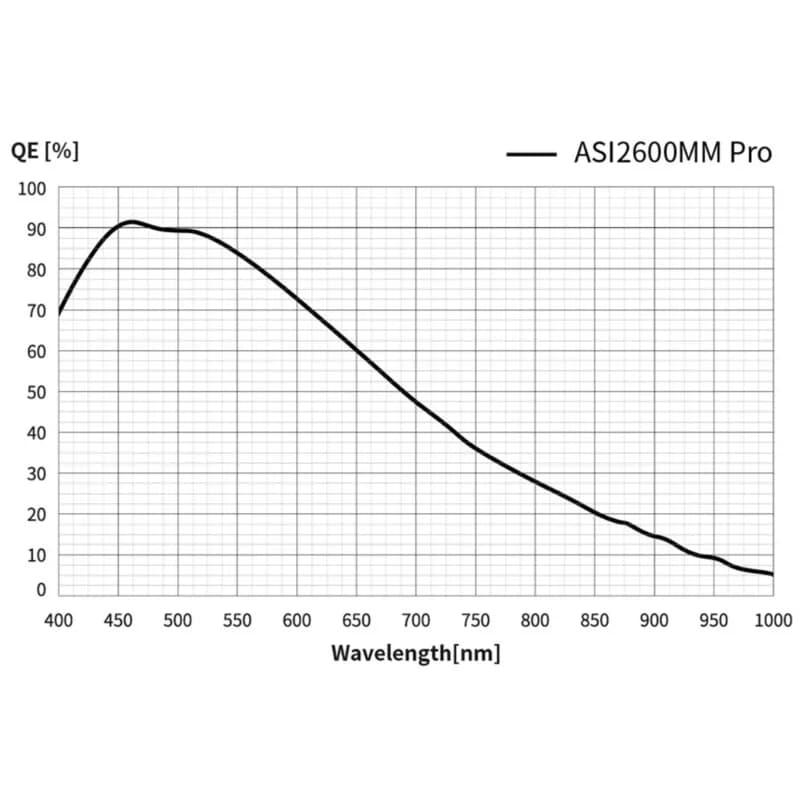

• quantum efficiency in the peak: 91%
• exposure time: 32 µs - 2000 s
• ROI (select area of interest): yes
• shutter type: rolling shutter, electronic
• back focus: 17.5 mm
• fast sensor protection: D60-2 AR, transmission> 95% @ 400 - 700 nm,> 75% @ 400 - 1000 nm
• thickness of the glass protecting the matrix: 2 mm
• buffer size: 256 MB DDR3
• ADC: 16 bit
• compatible operating systems: Windows, Mac OS, Linux
• ports: 1x USB 3.0 (in), 2x USB 2.0 (out), power socket 12 V, 3 A
• cooling system: 2-stage, Peltier cells, ΔT 35 ° C, maximum power consumption 12 V, 3 A
• built-in heater: yes, polyamide, 5 W
• minimum permissible operating temperature: -5 ° C
• maximum permissible operating temperature: 50 ° C
• connector: M42x0.75

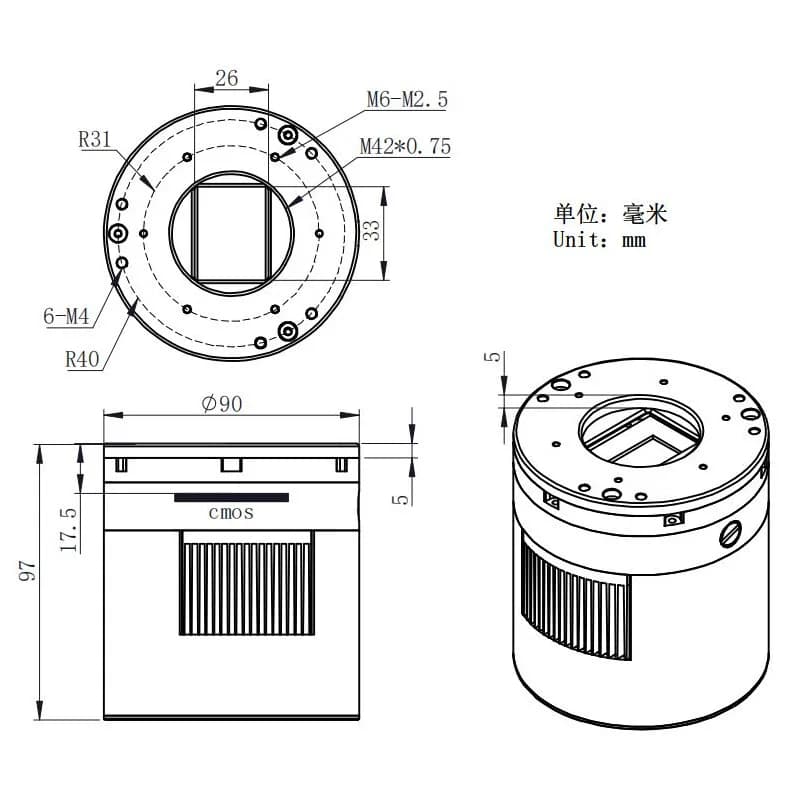

• dimensions: 97 x 90 mm
• weight: 700 g

Supported resolutions

16 bit ADC
• 3.51 fps @ 6248 x 4176
• 4.75 fps @ 4096 x 3072
• 6.71 fps @ 4096 x 2160
• 6.71 fps @ 3840 x 2160
• 13.13 fps @ 1920 x 1080
• 19.29 fps @ 1280 x 720
• 28.06 fps @ 640 x 480
• 51.44 fps @ 320 x 240
More resolution options are available in the software.
